Lens and reflector choices
The reference specification describes two optical approaches. Confirm the current component list, tool requirements and whether changes are approved for field servicing.
Commercial LED Downlights · Ø75 / Ø95 / Ø125 Series
Deep Adjustable Modular LED Downlight
A three-size recessed modular downlight with lens and reflector configurations described on the reference specification. It lists Ø75, Ø95 and Ø125 mm cut-outs with 15° / 24° / 38° beam choices. Confirm the chosen optical assembly and actual aiming mechanism for each size.
Ø75 / Ø95 / Ø125 Series · Product configurationAdjustable modular recessed downlight · product view
Modular optical design
Choose a controlled beam and ceiling fit.
The reference specification describes a rotating ring, COB bracket and selectable optical components. A project specification should treat the housing, module, optic, shielding and driver as one approved combination rather than assume all parts are interchangeable.
Check the actual movement
A rotating ring is described, but no consistent tilt or rotation range is listed in the model table. Review the mechanical drawing and sample.
Three listed openings
The reference table lists Ø75, Ø95 and Ø125 mm cut-outs. Verify the current opening tolerance, recess depth and driver clearance.
Optical options of the product
Before selection
Approve the optical package on a sample.
A sample lets the project team judge trim appearance, aiming, beam edge and glare under the intended ceiling height. Test any dimming with the selected driver.
- Send ceiling opening, depth and target lighting zone.
- Confirm lens or reflector version, COB module and shielding filter.
- Request model-specific photometry and approved driver details.
3Published cut-outs
3Listed lens beams
Technical data
Compare the three published housing sizes.
The reference specification provides family-level columns rather than unique orderable SKUs. Confirm current model codes before ordering.
| Size reference | Recommended power | Published fixture size | Cut-out | Listed lens beams |
|---|---|---|---|---|
| Ø75 model | 9–12W | 85 × 80 mm | Ø75 mm | 15° / 24° / 38° |
| Ø95 model | 15–20W | 104 × 108 mm | Ø95 mm | 15° / 24° / 38° |
| Ø125 model | 25–30W | 132 × 127 mm | Ø125 mm | 15° / 24° / 38° |
Full SKU codes, measured output and model-specific adjustment ranges must be confirmed in the approved quotation and datasheet.
InstallationRecessed; cut-out to verify
Housing describedDie-cast aluminum
Optical packageLens or reflector; confirm parts
ControlsConfirm compatible driver
Product details
Examine the modular construction.
Additional product images illustrate the optical and housing options from the reference specification.
Applications
Configurable accents for commercial ceilings.
Consider the family for retail, gallery and hospitality spaces after testing the selected optic and aiming on site.
- Boutique and display lighting
- Gallery and showroom accents
- Commercial reception and corridor zones

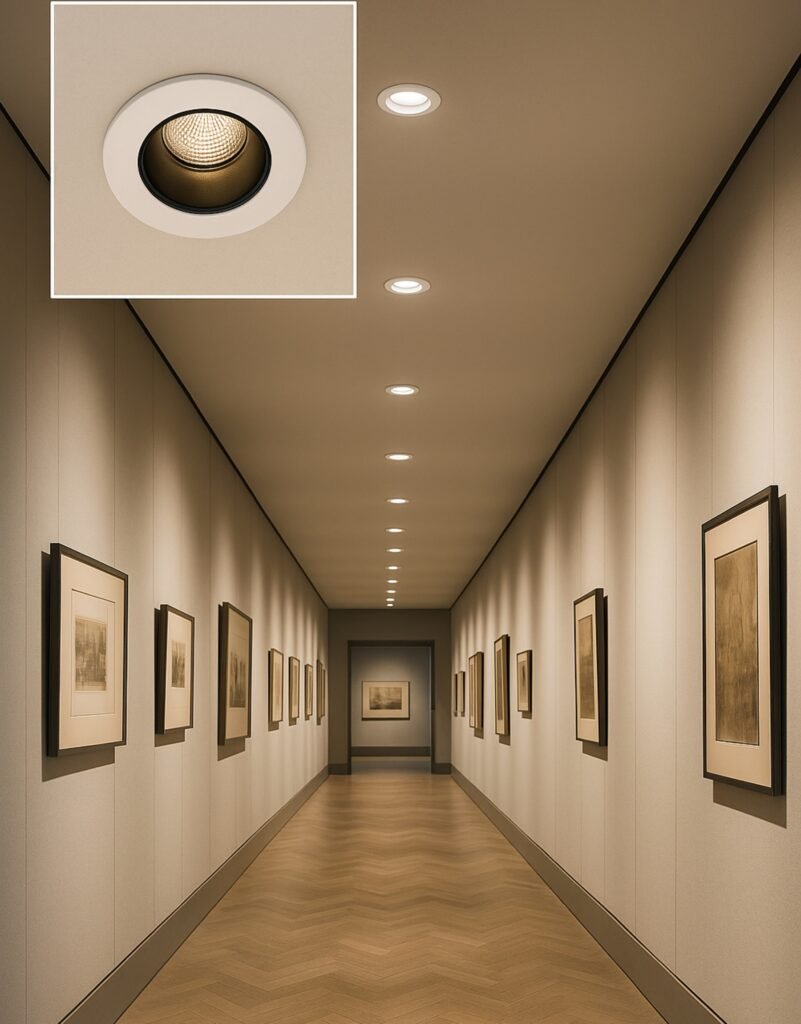

Concept visualization — product configuration shown for illustration.
Product FAQ
Questions before specifying?
We can confirm the exact options, compatibility and photometric data for your project configuration.
What ceiling cut-outs are listed?
The reference size table lists Ø75, Ø95 and Ø125 mm. Confirm current tolerances and recess depth on the selected model drawing.
Can I switch between lens and reflector optics?
The reference specification describes modular options, but field interchangeability and approved component combinations need confirmation in the current service documentation.
How far can the light be aimed?
The reference specification mentions a rotating ring but does not provide a model-specific range. Test the current sample and request a mechanical drawing.
Which driver or LED module should be used?
Choose the module, optic and driver as a tested set for the required power and controls. Request a current model-specific quotation and photometry.
Ready to review Ø75 / Ø95 / Ø125 Series for your project?
Send your application, installation details, target quantity and preferred output. We’ll help confirm the most suitable sample and next step.
