Six listed ceiling openings
The reference table lists Ø75, Ø90, Ø125, Ø140, Ø165 and Ø200 mm cut-outs. Its introductory copy mentions a narrower range, so use the model row and current drawing.
Commercial LED Downlights · JG Lens Series
Modular Recessed LED Downlight
A six-size recessed lens downlight family for commercial ceiling projects. the reference table lists cut-outs from Ø75 to Ø200 mm, power ranges from 7–10W to 50–55W and four beam choices. Confirm the selected LED module, driver and optic for the actual specification.
JG Lens Series · Product configurationJG modular recessed downlight · existing product image
Ceiling specification
Choose the aperture and optic together.
A modular recessed platform can help keep a consistent ceiling appearance across different room heights and lighting duties. The housing, LED module, beam and driver must be confirmed as a complete approved combination.
Four table-listed beams
15°, 24°, 38° and 55° appear in each reference model row. Check actual light distribution and glare using model-specific photometry.
Confirm approved components
The reference table lists compatible LED-module codes by size. Verify what is currently supplied, along with serviceability and driver compatibility.

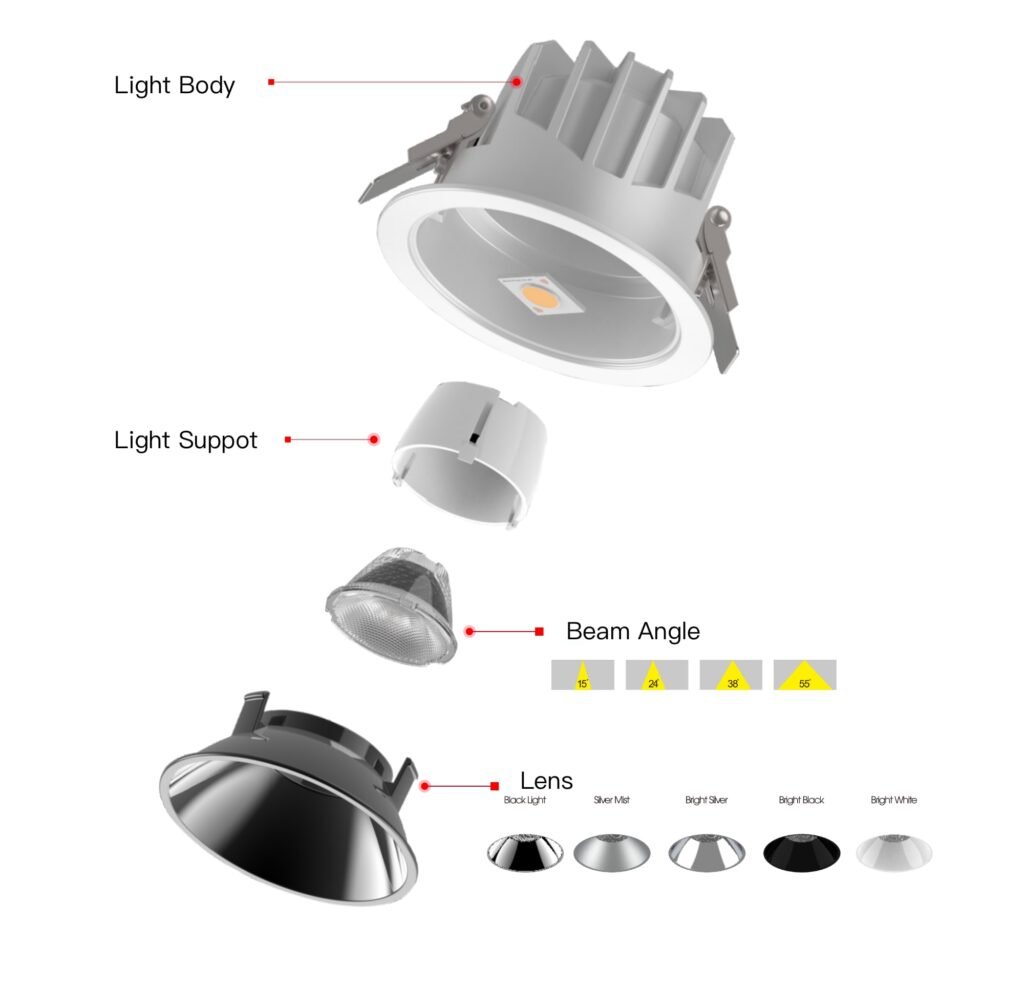

Module structure illustration of the product
Before ceiling cut-outs
Coordinate the light with the ceiling build-up.
Check recess depth, insulation clearance, ceiling thickness and access to the driver before cutting. A sample should confirm trim appearance and the intended beam on the target surface.
- Send ceiling drawing, opening size and available recess depth.
- Select the current LED module, beam, CCT and driver as a package.
- Request the model-specific drawing, photometry and market documents.
6Published sizes
4Listed beams
Technical data
Compare the published JG lens models.
Values are transcribed from the reference table and remain subject to current component and tolerance confirmation.
| Model | Cut-out | Power range | Published body size | Listed beams | Published CRI |
|---|---|---|---|---|---|
| JG-75-lens-2.5” | Ø75 mm | 7–10W | Ø86 × 55 mm | 15° / 24° / 38° / 55° | ≥90 |
| JG-90-lens-3” | Ø90 mm | 15–18W | Ø101 × 60 mm | 15° / 24° / 38° / 55° | ≥90 |
| JG-125-lens-4” | Ø125 mm | 25–30W | Ø140 × 73 mm | 15° / 24° / 38° / 55° | ≥90 |
| JG-140-lens-5” | Ø140 mm | 30–35W | Ø155 × 86 mm | 15° / 24° / 38° / 55° | ≥90 |
| JG-165-lens-6” | Ø165 mm | 35–40W | Ø180 × 94 mm | 15° / 24° / 38° / 55° | ≥90 |
| JG-200-lens-8” | Ø200 mm | 50–55W | Ø214 × 110 mm | 15° / 24° / 38° / 55° | ≥90 |
This recessed range includes six reference cut-outs up to Ø200 mm. Confirm the current module, driver, finish, dimensions and measured performance for the selected model.
InstallationRecessed; check cut-out tolerance
Reference CCT2700K–5000K options
Published housing colorsWhite / Black
ControlsConfirm driver and protocol
Applications
One visual family across several ceiling scales.
Consider the JG lens family for retail, hospitality and commercial rooms where different apertures can share a coordinated appearance. Final optic selection should follow a lighting calculation and sample.
- Commercial retail and showroom ceilings
- Hospitality and reception interiors
- Feature and general-lighting zones

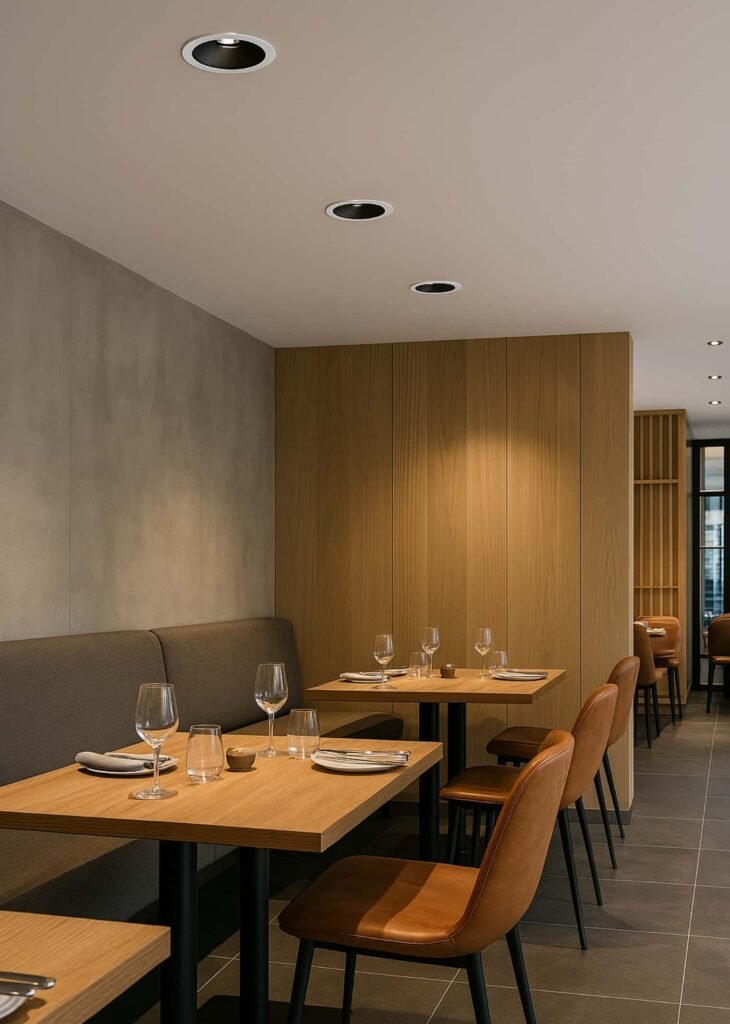

Concept visualization — product configuration shown for illustration.
Product FAQ
Questions before specifying?
We can confirm the exact options, compatibility and photometric data for your project configuration.
What cut-out sizes are listed?
The reference table lists Ø75, Ø90, Ø125, Ø140, Ø165 and Ø200 mm. Confirm the current tolerance and ceiling-depth requirement before cutting.
Which beam angles can I select?
Each reference model row lists 15°, 24°, 38° and 55°. Check model-specific optic availability and current photometry.
Are LED modules interchangeable?
The reference specification describes a modular system and lists compatible module codes. Do not assume field interchangeability; request the current approved combinations and service instructions.
Can the downlights be dimmed?
The reference specification mentions optional dimming systems. Confirm the chosen driver and control protocol for the exact model and destination market.
Ready to review JG Lens Series for your project?
Send your application, installation details, target quantity and preferred output. We’ll help confirm the most suitable sample and next step.
