Two listed cut-outs
Model 6329 lists Ø95 mm and model 6330 lists Ø125 mm. Confirm recess depth, ceiling thickness and opening tolerance on the latest drawing.
Commercial LED Downlights · 6329 / 6330 Series
Adjustable Recessed LED Downlight 6329 / 6330
A two-size recessed directional downlight family for display and architectural accents. Models 6329 and 6330 provide reference 30W and 35W configurations, Ø95 and Ø125 mm cut-outs and selectable 15° / 24° / 36° optical options. Confirm the actual adjustment mechanism on the selected model.
6329 / 6330 Series · Product configuration6329 / 6330 · recessed directional downlight
Precision accents
Place the beam on the intended feature.
A tiltable recessed head can support focused lighting on merchandise and architectural details. Select the housing and beam for the target distance, then check the actual optical adjustment and glare on a sample.
15°, 24° and 36° options
These beam choices may use different optical components; do not assume continuous field zoom. Request the optic specification and sample for the quoted version.
Confirm tilt range
A tiltable head is described, but the model table gives no numerical movement range. Check a sample at the required aiming angle.
Additional product view of the product
Before installation
Verify beam adjustment and ceiling fit.
When a design relies on a specific beam or aiming direction, a physical sample confirms whether the mechanism achieves it without excessive glare or ceiling interference.
- Send ceiling section, cut-out and target-surface distance.
- Confirm fixed-lens versus field-zoom construction and tilt range.
- Request photometry and driver details for the exact version.
2Published models
3Listed beam angles
Technical data
Compare the published 6329 and 6330.
Figures below come from the reference table. Confirm current tolerances and optical configuration before cutting the ceiling.
| Model | Nominal power | Published size | Cut-out | Listed beams | Published finish |
|---|---|---|---|---|---|
| 6329 | 30W | Ø105 × H85 mm | Ø95 mm | 15° / 24° / 36° | White / Black |
| 6330 | 35W | Ø140 × H125 mm | Ø125 mm | 15° / 24° / 36° | White / Black |
The listed beams are reference optic choices, not a promise of continuous field-adjustable zoom. Verify the selected optic, tilt, driver and measured light output on the approved sample.
Housing describedDie-cast aluminum
InstallationRecessed with spring clips
AimingTilt described; range to confirm
ControlsOptional; verify selected driver
Applications
Highlight selected objects and spaces.
Use this family as a candidate for retail features, art displays and hospitality accents after testing the exact beam and aiming at the installation height.
- Retail feature and product displays
- Gallery and exhibition accents
- Hotel reception and corridor features

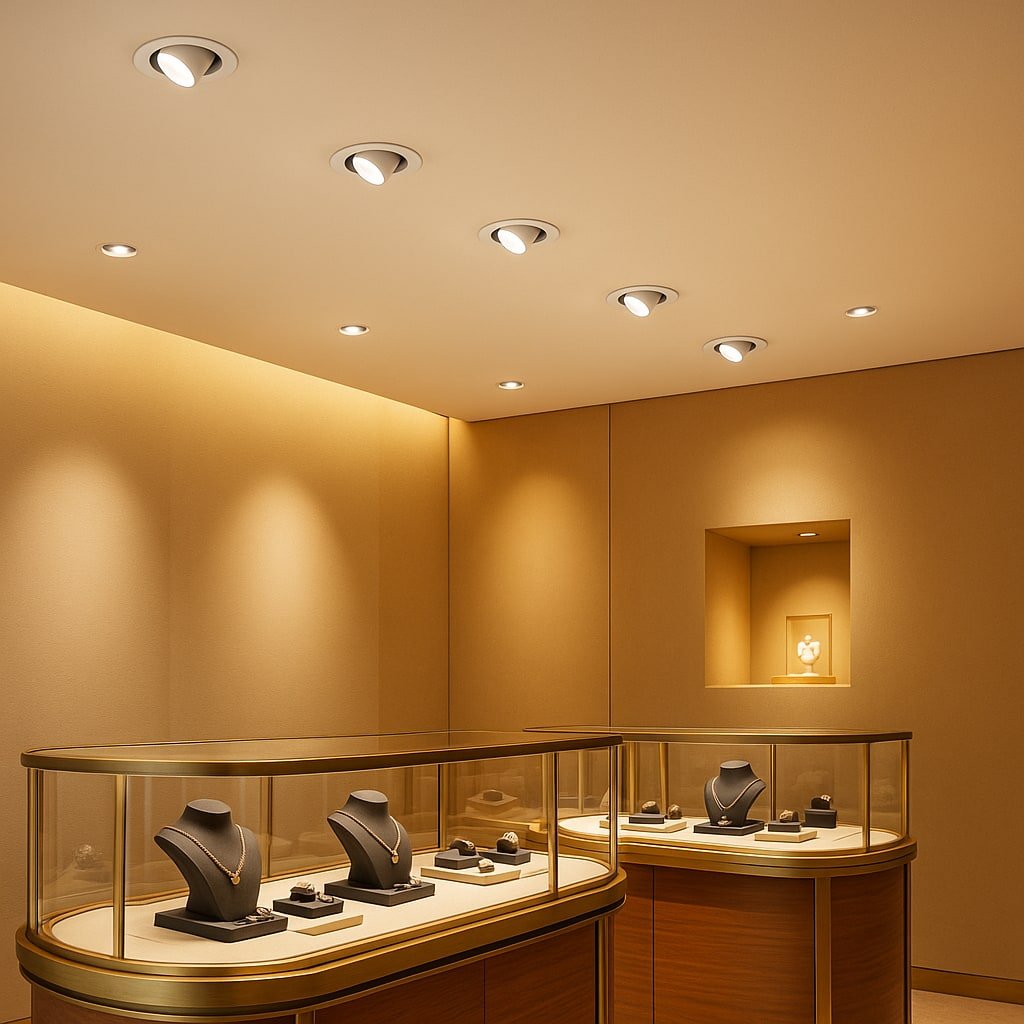

Concept visualization — product configuration shown for illustration.
Product FAQ
Questions before specifying?
We can confirm the exact options, compatibility and photometric data for your project configuration.
Is the beam continuously zoomable after installation?
Not established for every configuration. The reference range lists three beam options; confirm the mechanism with a current sample and operating guide before specifying field adjustment.
What cut-outs are listed?
The reference table lists Ø95 mm for 6329 and Ø125 mm for 6330. Verify the current opening tolerance and recess depth.
Can the head be tilted?
The reference specification describes a tiltable head but gives no model-specific angle. Check the mechanical range on the selected sample.
Can the driver or finish be customized?
The reference specification mentions options. Confirm current availability, driver compatibility and finish sample in the quotation.
