Review the adjustment range
The reference specification describes full horizontal rotation with vertical tilt. Check the real fitting and any obstructions in the intended ceiling before sign-off.
Commercial LED Downlights · 6337–6339 Series
360° Adjustable Zoom Downlight
A recessed directional downlight family for retail, hospitality and display spaces. The reference specification lists three body sizes, four beam choices and a rotatable aiming mechanism; confirm the exact adjustment range and optic supplied with your sample.
6337–6339 Series · Product configurationRecessed body · directional aiming
Flexible accent lighting
Aim the light after the ceiling plan is set.
A directional downlight helps buyers tune the lit area around merchandise, artwork or architectural details. The existing product page describes 360° horizontal rotation and approximately 30° vertical adjustment. Verify mechanical movement, ceiling clearance and beam behaviour on the supplied sample.
Four listed beam options
The family table lists 15°, 24°, 36° and 60°. Request the current optic and photometric report for the exact quoted variant.
Select by cut-out and depth
Three nominal body and cut-out sizes are published. Confirm the final drawing, ceiling thickness, spring-clip fit and driver access.

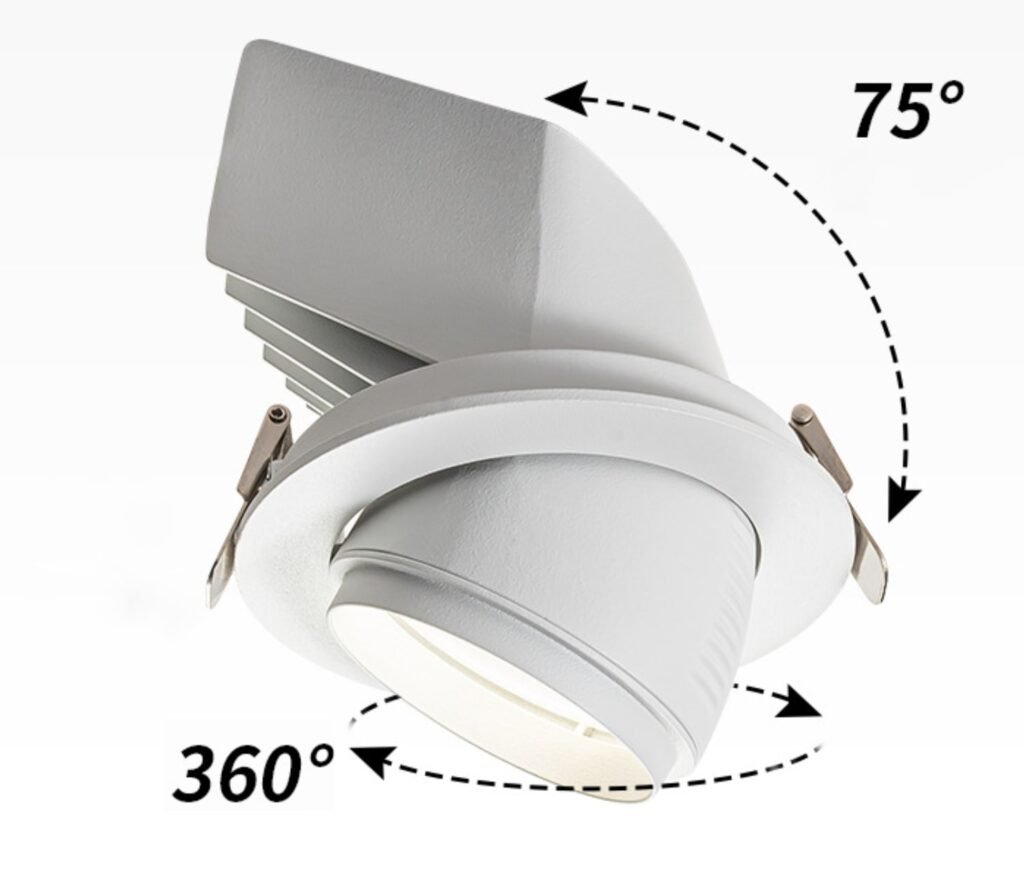

Aiming detail from the original product photography
Specify before ordering
Match body, beam and ceiling conditions.
The right downlight is not chosen by wattage alone. The cut-out, ceiling void, target surface, beam and control method all affect the installed result, so review a model-specific sample and drawing.
- Confirm the cut-out and available ceiling depth for the selected body.
- Choose the beam using mounting height, target size and the current IES or LDT file.
- Test the exact driver and dimmer combination if dimming is required.
3Published body / power combinations
4Published beam options
Technical data
Compare the three published body sizes.
These nominal dimensions and powers come from the reference specification. Use the current dimensioned drawing and approved sample for final specification.
| Model | Nominal power | Listed beam options | Body size (Ø × H) | Ceiling cut-out | Material |
|---|---|---|---|---|---|
| 6337 | 20W | 15° / 24° / 36° / 60° | Ø85 × H75 mm | Ø75 mm | Aluminum |
| 6338 | 35W | 15° / 24° / 36° / 60° | Ø105 × H90 mm | Ø95 mm | Aluminum |
| 6339 | 40W | 15° / 24° / 36° / 60° | Ø135 × H103 mm | Ø125 mm | Aluminum |
The listed beam angles are optical choices. Do not assume every beam is continuously field-adjustable; confirm the mechanism on the selected sample.
InstallationRecessed ceiling
HousingAluminum (reference)
AimingVerify on current sample
Driver / controlsConfirm for quoted variant
Product details
Inspect the luminaire from each side.
The existing product photographs show the housing and recessed mechanism. Compare them with the current sample for the exact model you specify.
Applications
Direct attention to the intended surface.
Consider this format for commercial spaces where merchandise, wall displays or architectural features need a controlled accent. Fixture spacing and glare should be checked with the selected beam and mounting height.
- Retail shelves and showroom displays
- Gallery walls and hospitality feature areas
- Offices and commercial interiors with directional lighting needs

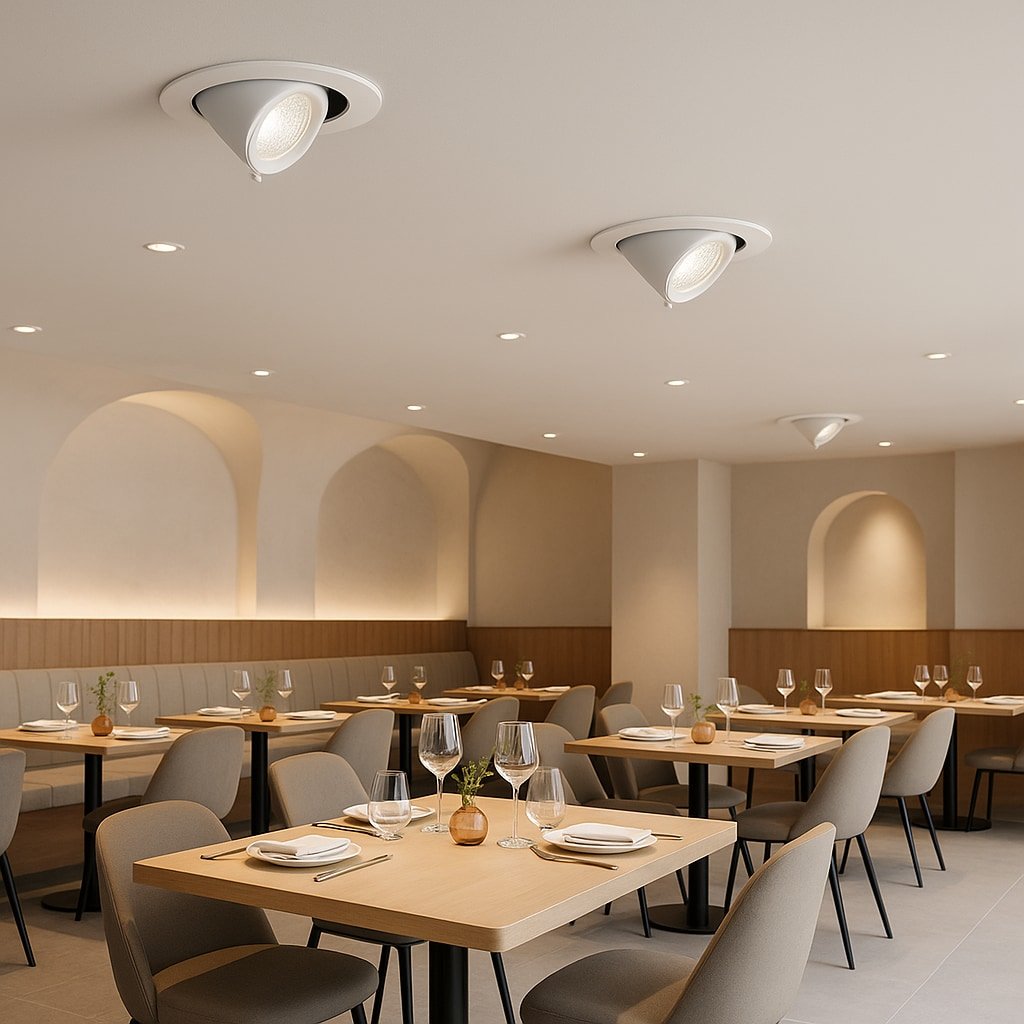

Concept visualization. Product appearance may vary by configuration.
Product FAQ
Questions before specifying?
We can confirm the exact options, compatibility and photometric data for your project configuration.
How far can the head be adjusted?
Reference information describes horizontal rotation and vertical tilt. Check the actual range, stop points and ceiling clearance on the selected sample before final design.
Are the 15°, 24°, 36° and 60° beams interchangeable or continuously zoomable?
The reference specification lists four beam options but does not clearly prove the adjustment mechanism. Ask for the exact optic specification and a sample of the quoted model.
Which ceiling cut-out should I use?
The reference specification lists Ø75 mm for model 6337, Ø95 mm for 6338 and Ø125 mm for 6339. Verify the final cut-out and mounting depth against the current drawing.
Can the downlight be dimmed?
The reference specification discusses optional dimming drivers. Confirm the available driver, control protocol and dimmer compatibility for the exact order configuration.
