Direct ceiling installation
The reference specification describes surface mounting where a recessed cavity is unavailable. Confirm base-ring fixing and wiring on the current drawing.
Commercial LED Downlights · Surface Anti-Glare Series
Surface-Mounted Anti-Glare LED Downlight
A surface-mounted COB downlight family with three published body sizes and optional shielding components. the reference table lists 15° / 24° / 36° / 55° beams. Confirm the current LED module, driver and assembled optical configuration before using it in a lighting schedule.
Surface Anti-Glare Series · Product configurationSurface-mounted COB downlight · product view
Visual comfort
Control the view into the light source.
A deep-set source, reflector and optional honeycomb component can help shield direct view of the LED. Actual glare performance depends on the chosen optics, fixture spacing and room geometry; request current photometry rather than relying on a generic UGR statement.
Reflector and honeycomb options
The earlier content shows different reflector finishes and shielding parts. Confirm the exact available assembly and its optical test data.
Three body sizes
The reference table lists Ø75 × H90, Ø91 × H112 and Ø128 × H137 mm housings with different recommended power ranges.

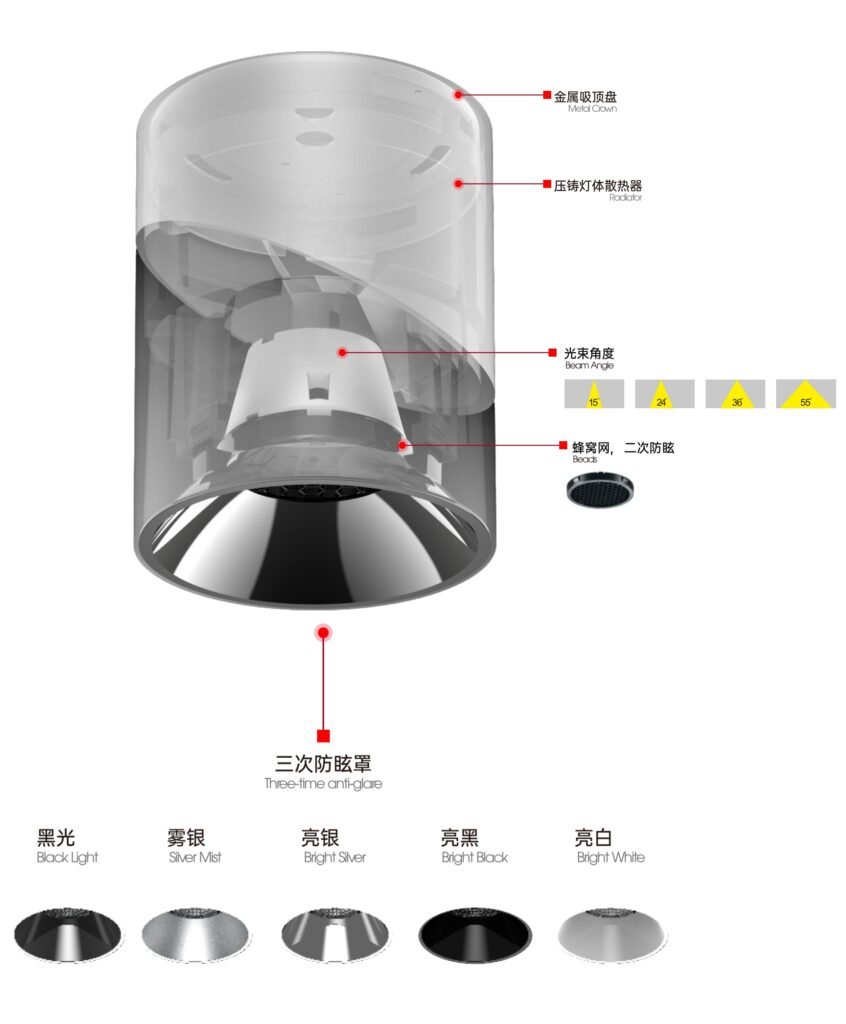

Optical-component illustration of the product
Specify the assembly
Choose module, beam and shielding together.
A surface downlight is a complete optical and electrical assembly. The quoted LED engine, reflector, honeycomb filter and driver should match the photometry used for the project.
- Share ceiling height, room use and target illuminance.
- Confirm body finish, reflector finish and whether a honeycomb is included.
- Request current driver, optic and photometric files for the selected power.
3Published body sizes
4Listed beam options
Technical data
Compare the published surface models.
Model names and power ranges are taken from the reference table; the actual assembled LED and driver need confirmation.
| Model | Power range | Body size | Listed beams | Published colors |
|---|---|---|---|---|
| Surface-10W-2.5” | 8–12W | Ø75 × H90 mm | 15° / 24° / 36° / 55° | Black / White |
| Surface-20W-3” | 18–24W | Ø91 × H112 mm | 15° / 24° / 36° / 55° | Black / White |
| Surface-30W-4” | 25–32W | Ø128 × H137 mm | 15° / 24° / 36° / 55° | Black / White |
Reference: table. Its accessory list and FAQ describe several reflector finishes inconsistently. Confirm the actual optic, housing finish, driver and any glare rating on the current approved configuration.
InstallationSurface-mounted
LED engineCOB module; exact code to confirm
ShieldingHoneycomb/reflector options to confirm
ControlsVerify selected driver
Applications
A visible fitting with controlled optics.
Consider the family for solid ceilings in retail, hospitality and commercial interiors where a low-glare sample can be assessed at the actual viewing angles.
- Retail and gallery display areas
- Hospitality corridors and reception zones
- Solid-ceiling renovation projects

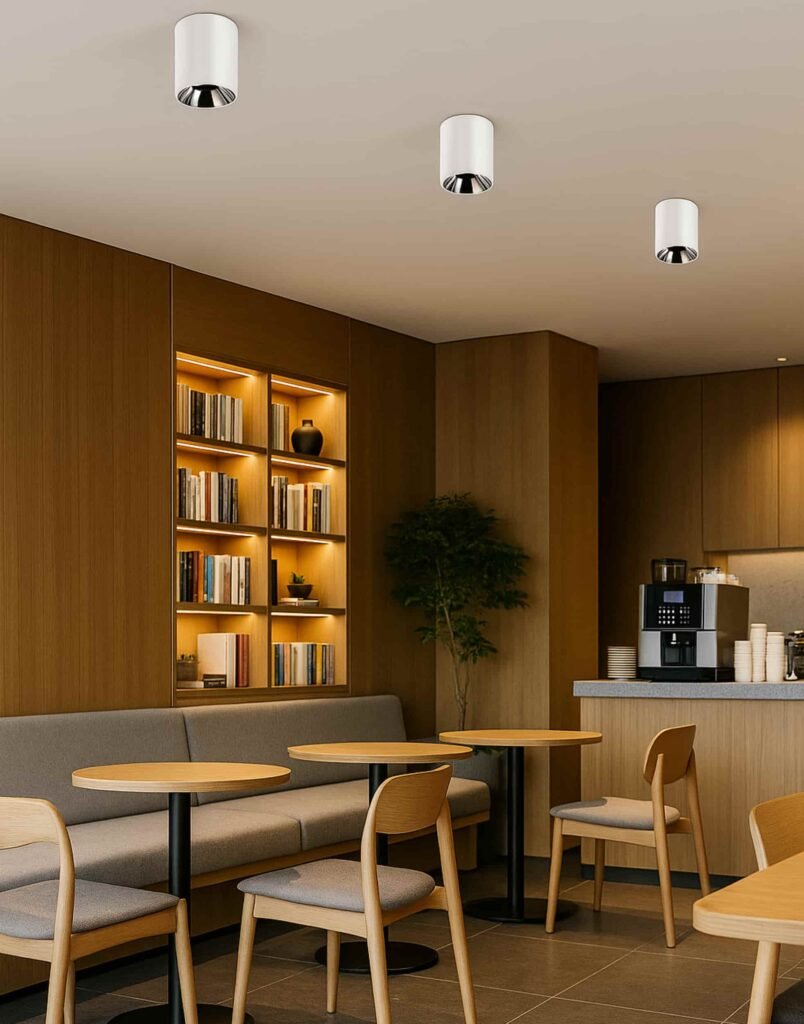

Concept visualization. Product appearance may vary by configuration.
Product FAQ
Questions before specifying?
We can confirm the exact options, compatibility and photometric data for your project configuration.
Does this product need a recessed ceiling cut-out?
The reference specification describes surface mounting, so no recessed opening is listed. Verify the base plate and cable entry on the current installation drawing.
Does the honeycomb guarantee a particular UGR?
No single UGR value applies to every room and configuration. Confirm the selected optic and use current photometry in a room-specific lighting calculation.
Which sizes and beams were published?
Three body sizes and 15°, 24°, 36° and 55° beams appear in the reference table. Confirm current availability for the selected LED module.
Can the reflector finish or driver be customized?
The reference specification mentions finish and driver options. Request samples and a current quotation for the exact assembly and minimum order quantity.
Ready to review Surface Anti-Glare Series for your project?
Send your application, installation details, target quantity and preferred output. We’ll help confirm the most suitable sample and next step.
