Four listed beam choices
The reference specification lists 15°, 24°, 36° and 60° optics. Ask for the photometric file of the exact model and beam before setting fixture spacing.
A cylindrical COB spotlight for retail displays, showrooms and other commercial spaces that need directional accent lighting. Compare the four sizes and published beam choices, then confirm the track adapter, driver and photometry for your project.
The LC-T021 family pairs a compact cylindrical head with a commercial track format. The reference specification lists four nominal size and power combinations, so a buyer can shortlist the right body before reviewing a sample and current beam data.
The reference specification lists 15°, 24°, 36° and 60° optics. Ask for the photometric file of the exact model and beam before setting fixture spacing.

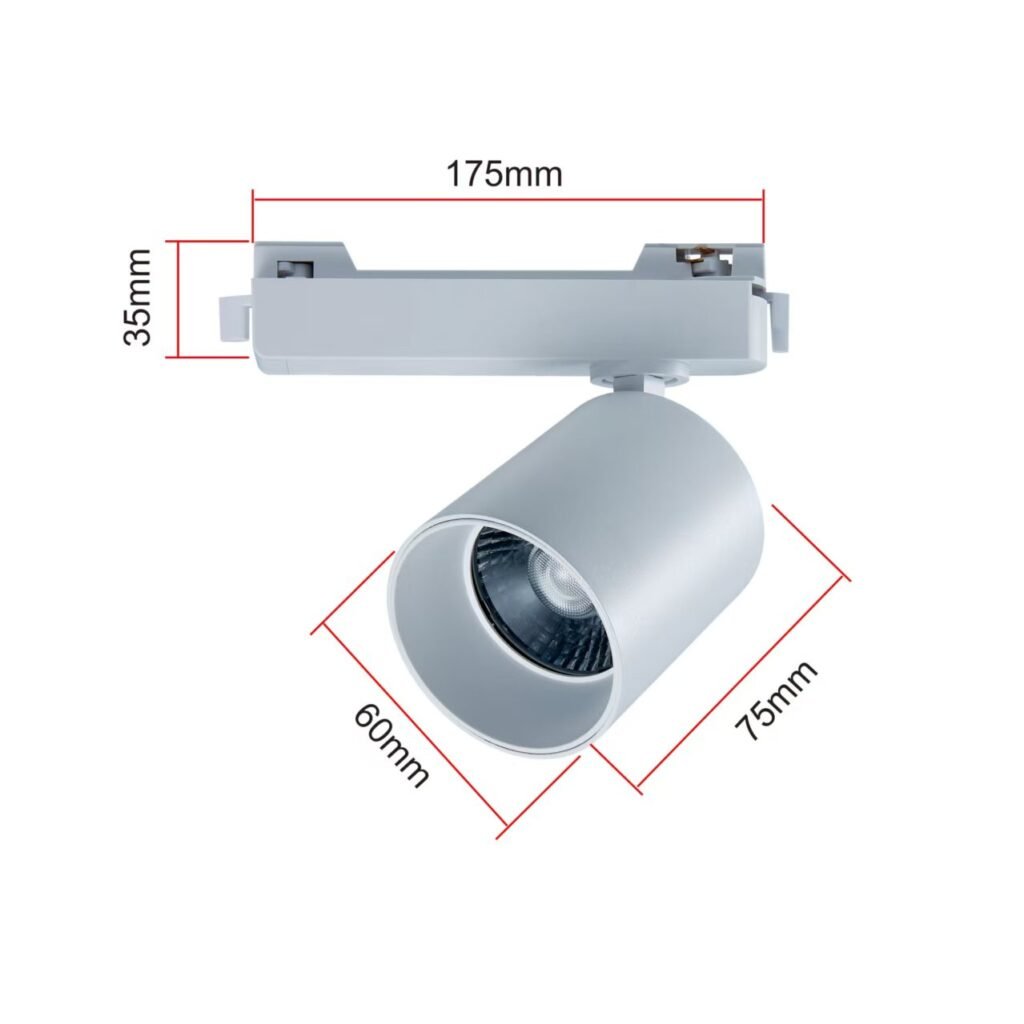

Four body sizes are shown in the existing specification table. Select the output and physical size around the display scale and mounting height.
Adapter type, local mains input and any dimming option should be confirmed for the actual track system and order configuration.
The fixture, adapter, track rail, optic and driver work as one system. A sample should be reviewed on the intended rail with the required beam and control method, especially for a roll-out across many sites.
These nominal values come from the existing product page. Verify the ordered variant, tolerances, optic and adapter against the current approved specification.
| Model | Nominal power | Body size (Ø × H) | Listed beams | Housing | Finish |
|---|---|---|---|---|---|
| LC-T021-60 | 12W | Ø60 × H75 mm | 15° / 24° / 36° / 60° | Aluminum | White / black |
| LC-T021-75 | 20W | Ø75 × H85 mm | 15° / 24° / 36° / 60° | Aluminum | White / black |
| LC-T021-85 | 30W | Ø85 × H100 mm | 15° / 24° / 36° / 60° | Aluminum | White / black |
| LC-T021-95 | 40W | Ø95 × H110 mm | 15° / 24° / 36° / 60° | Aluminum | White / black |
Source: the previous LC-T021 product page. Input voltage, CRI, dimming, certification and track compatibility should be confirmed for the exact supplied variant before purchase.

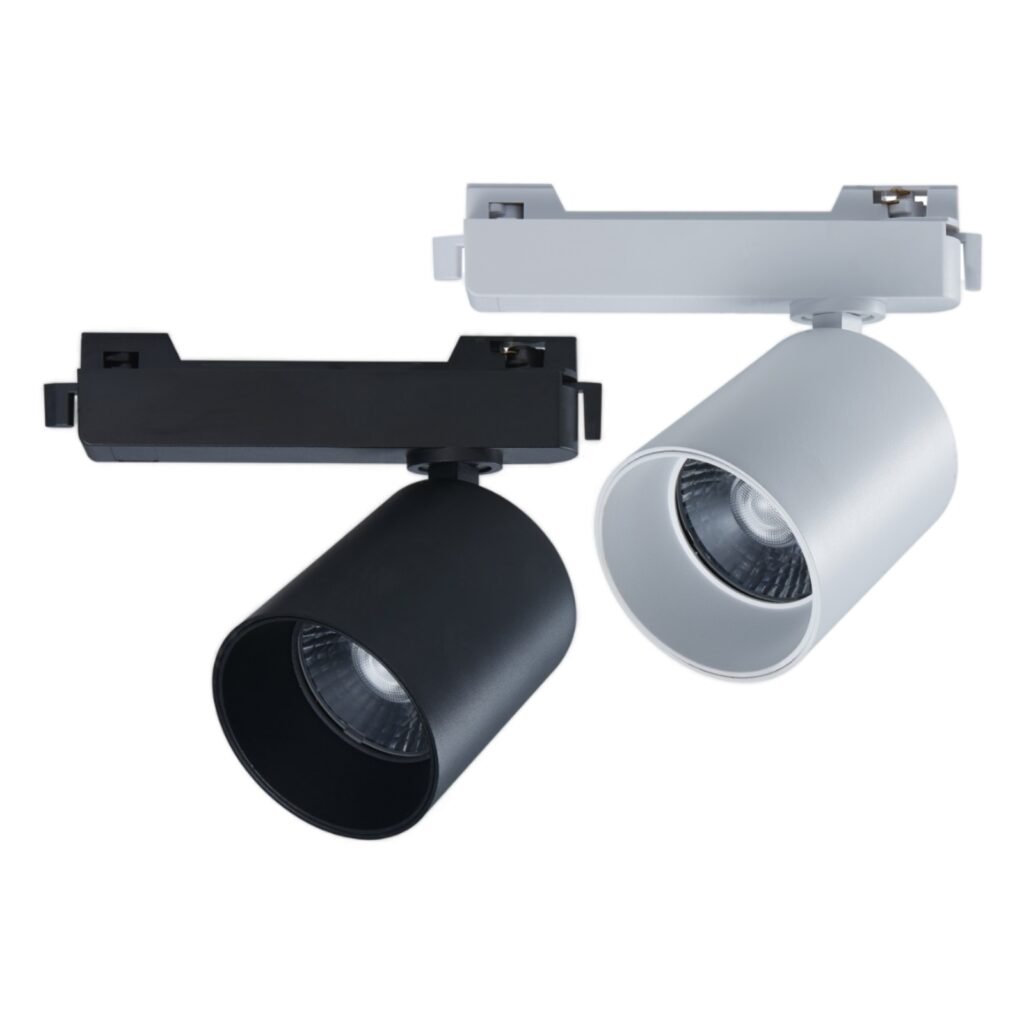

Existing product photographs show representative sizes and housing finishes. Confirm the exact visual sample for the configuration you order.

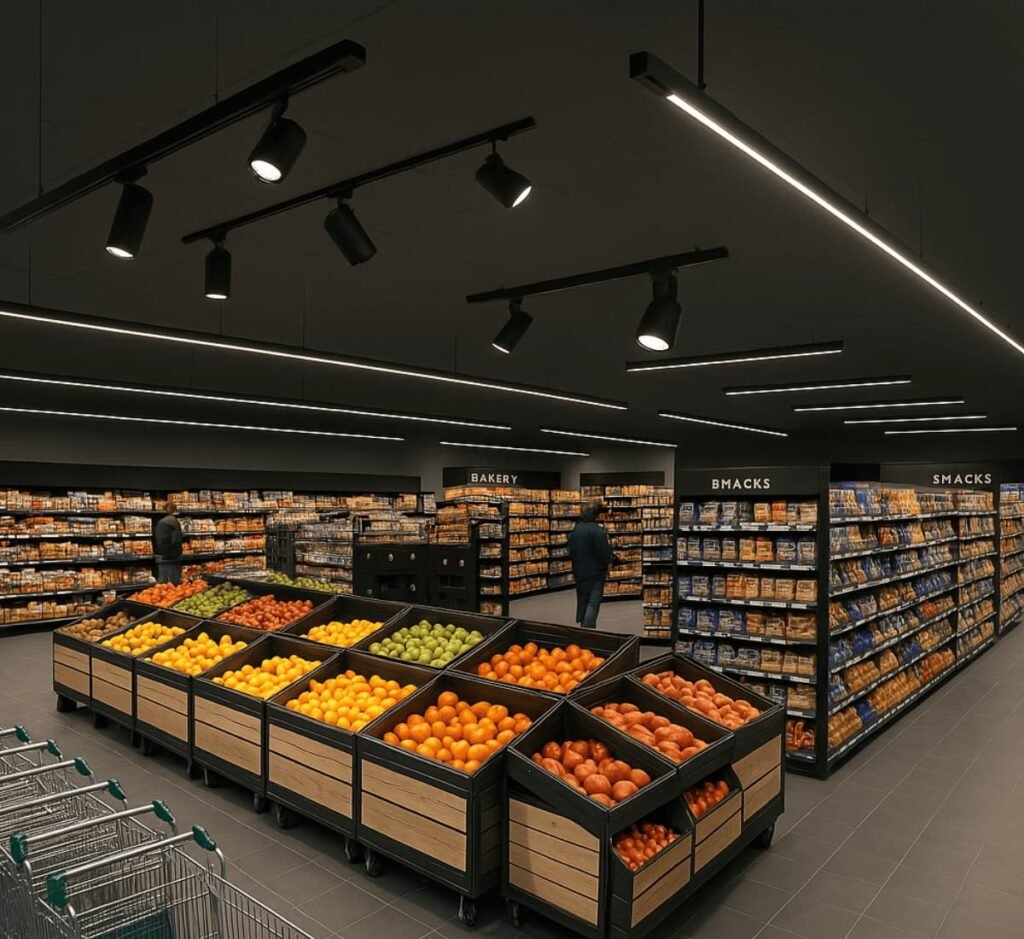

Use this format where individual products, wall displays or feature areas need emphasis. The right beam depends on mounting height, target size and the desired contrast against ambient lighting.

We can confirm the exact options, compatibility and photometric data for your project configuration.
The reference specification lists 15°, 24°, 36° and 60° options. Request the current photometric file for the exact size and beam before final layout.

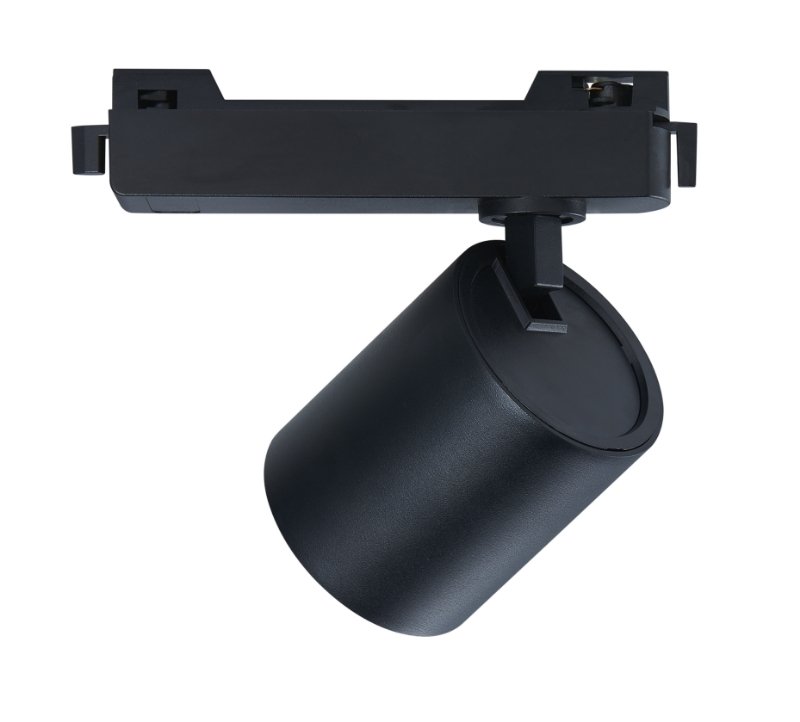

Black and white housings are pictured and listed on the existing page. Confirm finish availability and sample appearance for your selected model and quantity.
Track systems and adapters are not universally interchangeable. Share your rail profile and market so the compatible adapter and electrical configuration can be checked.
The reference specification discusses optional dimming and customization. Availability depends on the exact driver, order quantity and approval requirements, so request a model-specific quotation.
Send your application, installation details, target quantity and preferred output. We’ll help confirm the most suitable sample and next step.
