Direct each panel separately

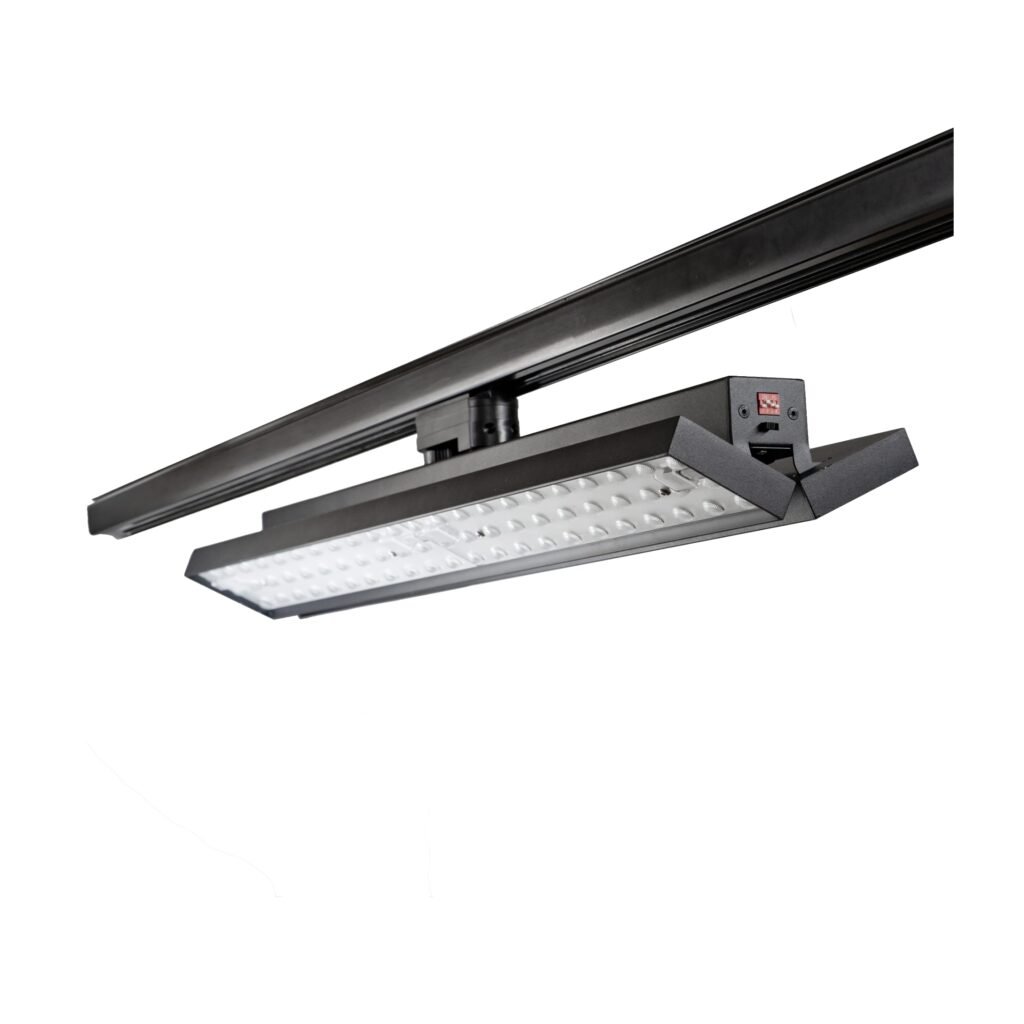

Adjust the panels to suit shelves, focal displays or changing merchandise zones. Confirm the final aiming range on the project sample.
A two-panel linear track luminaire for retail and commercial projects. Aim each panel to shape the light around shelves, displays and circulation areas, then select the output and optics for the approved layout.
The LL1615 combines two directional light panels in a single track-mounted body. It is designed for projects that need to balance display illumination, aisle light and a clean ceiling line without specifying two separate luminaires.
Adjust the panels to suit shelves, focal displays or changing merchandise zones. Confirm the final aiming range on the project sample.
The existing published range lists four power and lumen packages. Final photometry should be checked against the current approved datasheet.
Discuss rail compatibility, finish, optics, CCT and control requirements before sample approval and production.
Use the adjustable structure to direct light toward the areas that matter. A sample review is the right point to verify clearances, rail fit and the exact range of movement for your installation.
Use these published LL1615 options as a starting point; confirm the final configuration against the approved sample and current datasheet.
| Model | Power | Listed output | Dimensions | Optics | CRI |
|---|---|---|---|---|---|
| LL1615-27W | 27W ±5% | 4,393 lm ±5% | 577 × 140 × 124 mm | 60° / 90° | Ra >80 / 90 |
| LL1615-40W | 40W ±5% | 6,200 lm ±5% | 577 × 140 × 124 mm | 60° / 90° | Ra >80 / 90 |
| LL1615-50W | 50W ±5% | 7,680 lm ±5% | 577 × 140 × 124 mm | 60° / 90° | Ra >80 / 90 |
| LL1615-60W | 60W ±5% | 9,079 lm ±5% | 577 × 140 × 124 mm | 60° / 90° | Ra >80 / 90 |
Values above are carried over from the existing product page and must be checked against the latest approved specification before final publication.
Real product photography helps buyers review the key details before requesting a sample.



The directional panels can help project teams place light across gondolas, promotional displays and circulation areas while keeping the installation visually consistent. Layout and glare performance should be validated for the actual space.

We can confirm the exact options, compatibility and photometric data for your project configuration.
The LL1615 is presented as a two-panel adjustable fixture. The exact mechanical range and clearances should be confirmed with a sample for your installation.
The existing page lists 27W, 40W, 50W and 60W versions. Please check the latest approved datasheet before final specification.
Track and adapter compatibility varies by installation. Send your rail profile and market requirements so the team can check the correct configuration.
Yes. Share the application, target quantity, finish, optic and control requirements to begin a sample and project-pricing discussion.
Send your application, installation details, target quantity and preferred output. We’ll help confirm the most suitable sample and next step.
