This warehouse aisle lighting worked example shows how we would compare a wide beam with an aisle optic before recommending a linear high bay. The project is illustrative—not a real customer case and not a final photometric design. Its dimensions and decision process are provided so buyers can understand what should be modeled with the exact IES or LDT files for their building.

At LCB Light, we look beyond the average floor-lux headline. In racked warehouses, people need to see labels, stored goods and obstacles. Vertical illumination, minimum levels and uniformity can matter more than the single brightest point.

Illustrative project brief

Assume a 54 m × 30 m warehouse with five rack aisles. Each aisle is 2.6 m wide, racks are 9 m high and luminaires mount at 11 m above the floor. Picking occurs at multiple shelf levels, occupancy varies by aisle and the buyer wants sensor control. Surface reflectances, dirt conditions and target levels must be confirmed during real design.

We shortlist two 150 W-class linear high-bay configurations from the same family: Option A uses a broad symmetric optic; Option B uses an aisle distribution. Exact lumens, intensity and efficacy would come from measured product files.

What a wide beam is likely to do

A wide beam spreads light across and along the aisle. In an empty model it may create an attractive average floor value and overlap between rows. Once tall racks are added, some cross-aisle output can strike rack tops or be blocked, while the lower shelf faces receive less useful light than the average suggests.

The wide optic may still be suitable in receiving, packing or open storage zones. The question is not whether it is good or bad; it is whether the distribution fits the geometry.

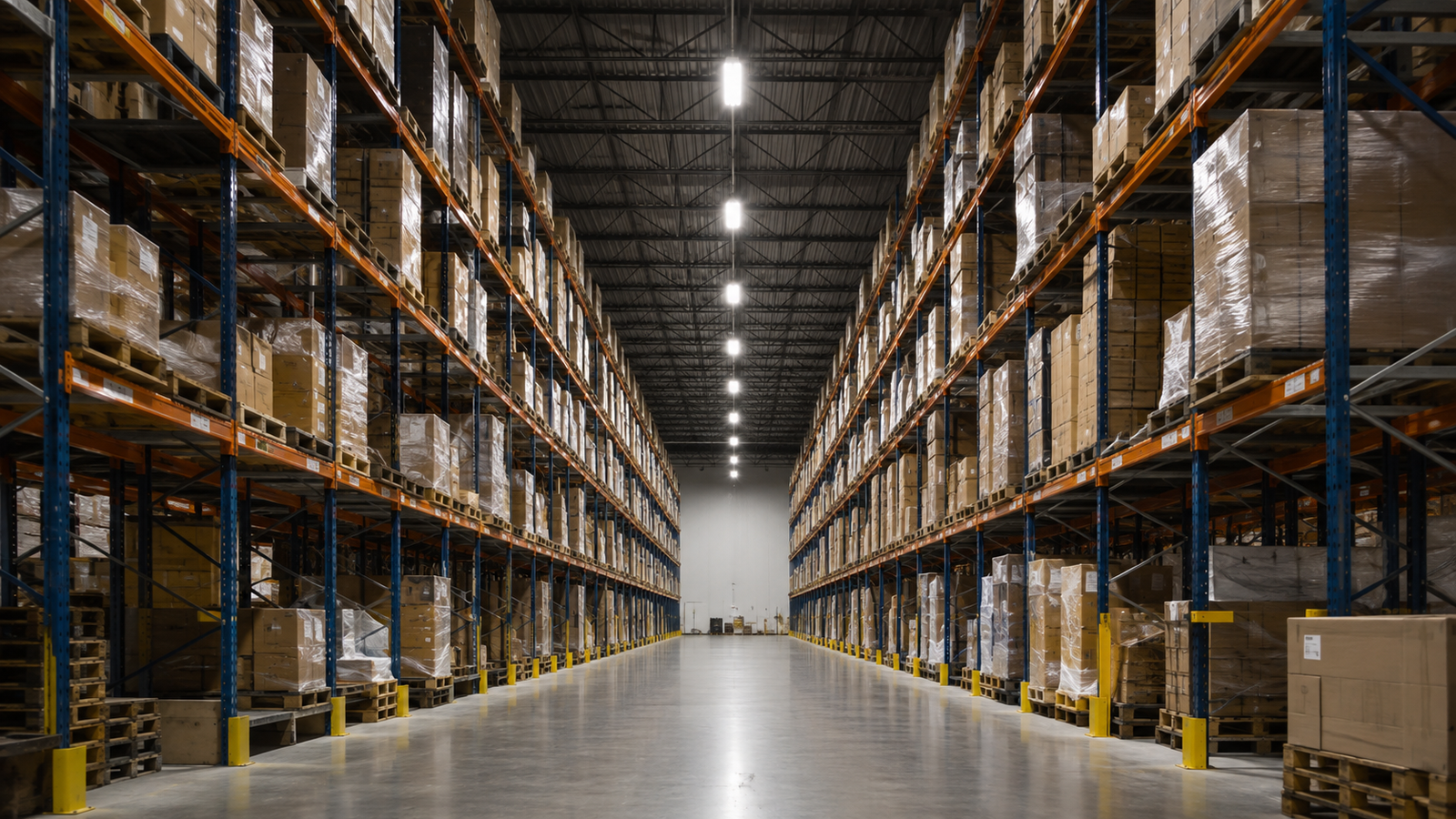

What an aisle optic is intended to do

An aisle optic narrows the distribution across the corridor and extends it along the aisle. The aim is to place more intensity on the floor and vertical rack faces while reducing spill above or behind the racks. Orientation is critical: rotating the fitting 90 degrees can destroy the intended pattern.

Some aisle optics create strong centerlines or bright end zones if spacing is not coordinated. The photometric model must review minimum values and uniformity rather than assuming the specialized optic automatically wins.

Set comparison outputs before running the model

Use the same maintenance factor, reflectances, calculation grid and target for both options.

A transparent decision without invented lux results

Because this example does not use a named measured photometric file, we do not publish fabricated lux numbers. The expected decision hypothesis is that the aisle optic will improve vertical utilization between tall racks, while the wide beam may be more flexible in open zones. A real model could confirm, overturn or refine that hypothesis.

This distinction matters for trustworthy content. Buyers should ask every supplier to provide the calculation report and file names. A table of unexplained lux values is not evidence.

Controls and zoning in the example

Each rack aisle can form a sensor zone so unoccupied rows reduce output while maintaining any required background level. Sensor position and detection pattern should be tested around tall racks. Sudden on/off transitions may be undesirable for drivers, so staged dimming and sensible timeouts can improve operation.

Mark emergency luminaires and egress requirements separately. The high-bay driver, sensor and emergency configuration must be compatible and accessible for maintenance.

How we would validate the proposal

1. Obtain the final rack and structural plan.
2. Model both optics with exact measured files.
3. Compare horizontal and vertical planes under one set of assumptions.
4. Review glare, sensor coverage, circuit loading and mounting accessories.
5. Install a representative aisle sample.
6. Measure and visually inspect after racks and goods are present.
7. Freeze the optic orientation and product code for production.

Our broader linear high-bay selection guide covers environmental ratings, controls and procurement.

Illustrative calculation setup

In a real model, we would add calculation surfaces on the aisle floor and on each rack face at several heights. The grid should avoid averaging large unoccupied areas into the result. We would enter agreed ceiling, wall, rack and floor reflectances, then apply a maintenance factor that reflects dust and cleaning. Both optics would use the same assumptions.

We would also test several spacings rather than forcing the same quantity. The goal is to find the lowest practical installed configuration that meets the horizontal, vertical, uniformity and glare objectives—not to make one optic win under a layout designed for the other.

Why vertical gradients matter

An average vertical value can hide bright upper shelves and dim lower labels, or the reverse. Review the minimum and a height profile along representative rack faces. Forklift mast positions, overhanging goods and solid shelving can add shadows not shown in a simplified model. A pilot aisle with typical stock provides valuable confirmation.

Compare installed cost and operating behavior

The financial table should include fixture count, power, sensors, suspension, wiring, access equipment and commissioning. An aisle optic may use light more effectively but require careful orientation and labeling. A broad optic may allow more flexible future layout but waste output in a fixed narrow aisle. Give those operational differences a value rather than comparing unit price alone.

Maintenance and future rack changes

Record optic direction on the luminaire and as-built drawing. If racks are removed later, an aisle distribution may create an unsuitable open-floor pattern; conversely, a wide optic left after new racks are added may underperform vertically. Facility teams should know which zones can be repurposed without recalculation.

Keep spare drivers, sensors and at least one complete fitting from the approved family where downtime matters. For a long facility life, confirm whether the optic can be replaced separately or whether the complete luminaire must change.

What the final report should show

Include the file names, maintenance assumptions, calculation grids, summary tables, false-color views, vertical planes, fixture schedule and connected load. Mark the optic orientation. At LCB Light, we also prefer a short written conclusion explaining why the selected option fits each zone. This prevents a later procurement substitution based only on wattage and housing shape.

Information to send the luminaire supplier

Provide a plan with rack rows, aisle widths, rack and mounting heights, structural obstructions, working zones and feed locations. Add supply voltage, ambient range, dust/moisture condition, operating schedule, controls, emergency requirements and the visual tasks performed. State whether rack positions are final or likely to change.

Photos help explain surfaces and existing mounting, but dimensioned information should control the calculation. Ask the supplier to return a fixture schedule, photometric filenames, optic orientation, connected load and assumptions. When those items are visible, the buyer can compare a wide beam and aisle optic on useful light and installed scope instead of marketing beam-angle labels.

Turn the technical finding into a purchasing decision

A useful specification states the application, exact luminaire configuration, operating conditions, required evidence and acceptance method. At LCB Light, we encourage buyers to separate mandatory performance from preferences and to approve one production-intent sample. That makes quotations comparable and gives production inspectors a clear reference.

Keep the approved product code, drawing, driver, optic, test file and finish in one project package. If any of those items changes, review the effect before shipment. This simple change-control step protects the result more effectively than adding more marketing adjectives to the purchase order.

Our commercial conclusion from the example

The buyer should compare complete installed proposals, not simply 150 W versus 150 W. The optic can change useful light, quantity, sensor layout and mounting orientation without changing the wattage label. At LCB Light, we would use one representative aisle to approve the method, then apply the verified logic to repeated zones.

If you send a rack plan, mounting height, operating schedule and target tasks, we can discuss which photometric files and vertical surfaces should be included in the comparison. Final design remains project-specific and should meet applicable requirements.

Frequently asked questions

Does an aisle optic always reduce fixture quantity?

No. Quantity depends on output, mounting, spacing, targets and geometry. The optic may improve utilization without changing count, or it may require a different spacing pattern.

Should warehouse calculations include vertical planes?

For racked storage and picking, yes. Floor averages alone do not describe light on shelf labels and products.

Can one warehouse use both optics?

Yes. Aisle distributions can serve racks, while wider distributions serve receiving, packing and open storage areas.
