Choose framed or trimless
The published A-type and B-type models support different ceiling details. Confirm the installation drawing and cut-out before ceiling work begins.
Architectural COB Downlights · 6327 / 6328 / 6329 Series
Architectural Recessed Wall-Washer Downlight
A recessed COB wall-washer family for lighting vertical surfaces in retail, hospitality and gallery projects. Choose the framed or trimless body, then check the cut-out and beam against the wall geometry.
6327 / 6328 / 6329 Series · Product configurationRecessed wall washing · framed or trimless
Architectural wall washing
Bring light onto the vertical surface.
This family is intended to illuminate a wall or display from a recessed ceiling position while maintaining a restrained fixture appearance. Selection depends on the wall offset, mounting height, intended beam and the ceiling finish.
Match the beam to wall distance
The existing product page lists 15°, 24° and 36° optics. A sample or photometric study should confirm the actual wall coverage.
Coordinate the recessed space
Allow for the stated body height, clips, driver access and surrounding services when reviewing the reflected ceiling plan.
Housing, trim and optical construction
Ceiling and beam
Specify the ceiling detail first.
Decide whether a visible frame or plaster-in trimless edge is appropriate. Then confirm the ceiling cut-out, fixture depth, beam and wall offset using the exact project sample.
- Coordinate framed versus trimless installation with the ceiling contractor.
- Check the specified beam using an IES or LDT file for the selected model.
- Confirm driver, dimming and compliance requirements before bulk order.
5Published model variants
3Listed beam options
Technical data
Select the body and ceiling opening.
Nominal dimensions below are copied from the existing product table. Confirm the latest drawing, exact model and supplied driver before approving the ceiling plan.
| Model | Power | Body size | Cut-out | Listed beam | Finish type |
|---|---|---|---|---|---|
| 6327A | 7W | Ø62 × H75 mm | Ø55 mm | 15° / 24° / 36° | Framed |
| 6328A | 12W | Ø83 × H93 mm | Ø75 mm | 15° / 24° / 36° | Framed |
| 6329A | 20W | Ø103 × H112 mm | Ø95 mm | 15° / 24° / 36° | Framed |
| 6327B | 7W | Ø80 × H75 mm | Ø55 mm | 15° / 24° / 36° | Trimless |
| 6328B | 12W | Ø98 × H93 mm | Ø75 mm | 15° / 24° / 36° | Trimless |
The existing page is the source of these nominal values. Lumen output, measured glare, CCT, CRI, dimming, certification and any supplier authorization are not asserted here without model-specific documentation.
MountingRecessed
HousingAluminum listed
Optic choices15° / 24° / 36° listed
Ceiling finishFramed or trimless
Product details
Review the exact trim and housing.

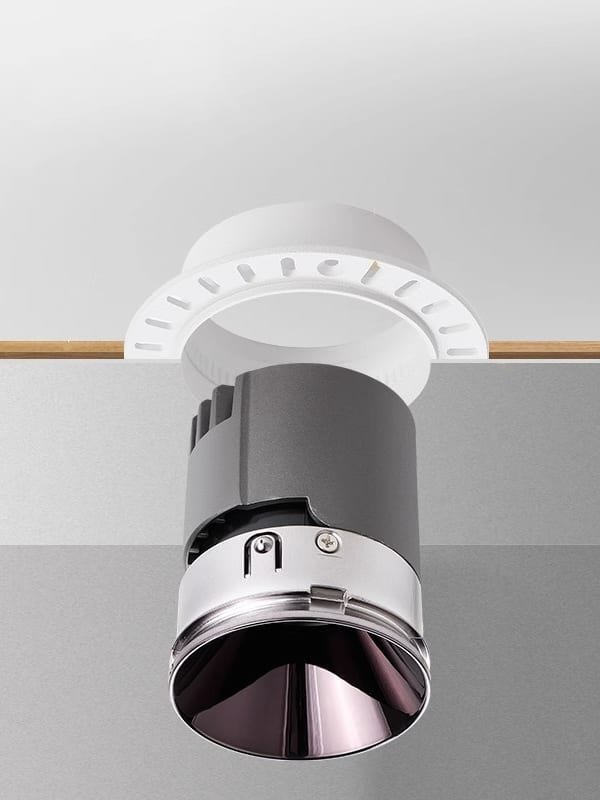

The available original photographs show the family and a housing detail. Please request current photographs of the selected model if a specific finish is important.
Applications
Plan the wall, not just the ceiling.
Wall-washer performance depends on the installation geometry. During a sample test, inspect the brightness and uniformity on the vertical surface, the transition near the ceiling, and any direct view of the light source.
- Retail display walls and product backdrops
- Hotel corridors and reception areas
- Gallery and commercial feature walls
Concept visualization — product configuration shown for illustration.
Product FAQ
Questions before specifying?
We can confirm the exact options, compatibility and photometric data for your project configuration.
What is the difference between A-type and B-type models?
The existing range identifies A-type as framed and B-type as trimless. Confirm the exact plaster-in detail and cut-out drawing before installation.
Which beam angle is suitable for a wall?
The page lists 15°, 24° and 36°. Wall offset, height and desired coverage determine the choice; request an IES or LDT file and review a sample.
Does every size have a trimless version?
The existing table lists trimless versions for the 7W and 12W models only. Ask for the latest range sheet if a different power or diameter is needed.
What should be checked before ordering?
Confirm the exact body and cut-out, beam, driver, dimming compatibility, finish and required compliance documents on the approved sample.
Ready to review 6327 / 6328 / 6329 Series for your project?
Send your application, installation details, target quantity and preferred output. We’ll help confirm the most suitable sample and next step.
