LED Track Lighting · D316B Series

Rectangular-Driver COB LED Track Spotlight

A higher-power COB track spotlight with a visible rectangular driver housing. The reference specification lists 30W, 40W and 50W versions with five beam choices for commercial accent lighting. Verify the actual rail adapter, driver and dimensions for the selected model.

30W / 40W / 50W listedRectangular driver housingFive table-listed beams
Rectangular-Driver COB LED Track Spotlight product view

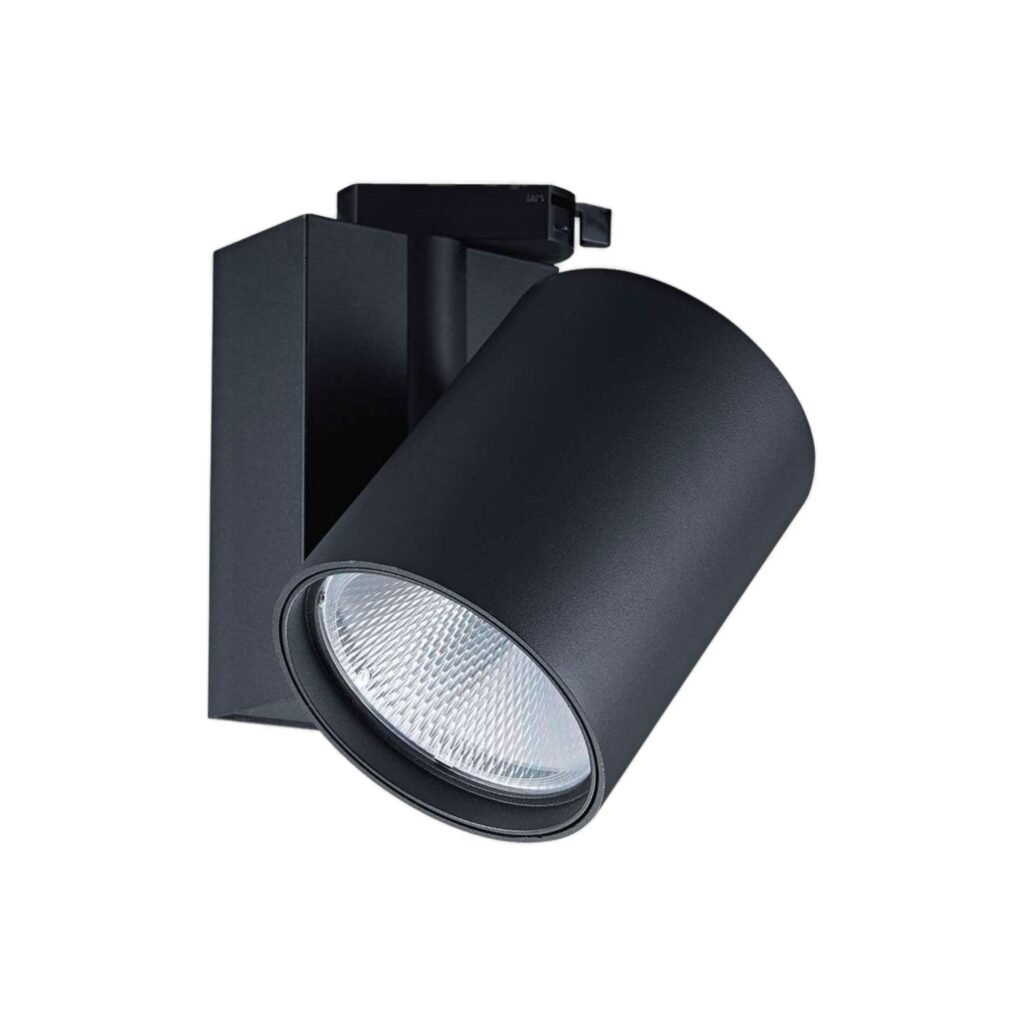

D316B Series · Product configurationD316B Series · black housing view

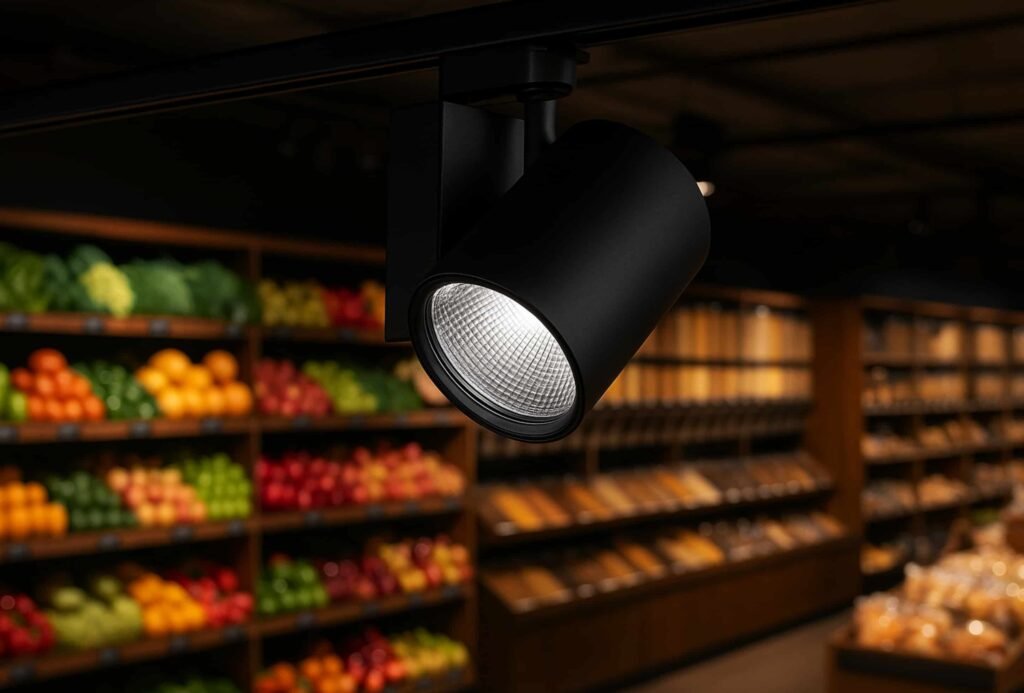

High-output accent lighting

A stronger spotlight with a deliberate ceiling detail.

The rectangular housing distinguishes this family from slimmer track spots. It may suit taller retail spaces and prominent display zones, where output and beam selection must be checked against the actual merchandise and mounting height.

01 / Power

Three nominal options

The reference table lists 30W, 40W and 50W. Select by required illuminance and current photometry, not wattage alone.

02 / Optics

Five beams in the table

The reference table lists 15°, 24°, 36°, 45° and 60°. Confirm the optic is available at the chosen wattage and request its IES or LDT file.

03 / Rail fit

Check the adapter before roll-out

The reference specification makes a broad compatibility claim. Provide the project rail profile and electrical details to verify fit and operation.

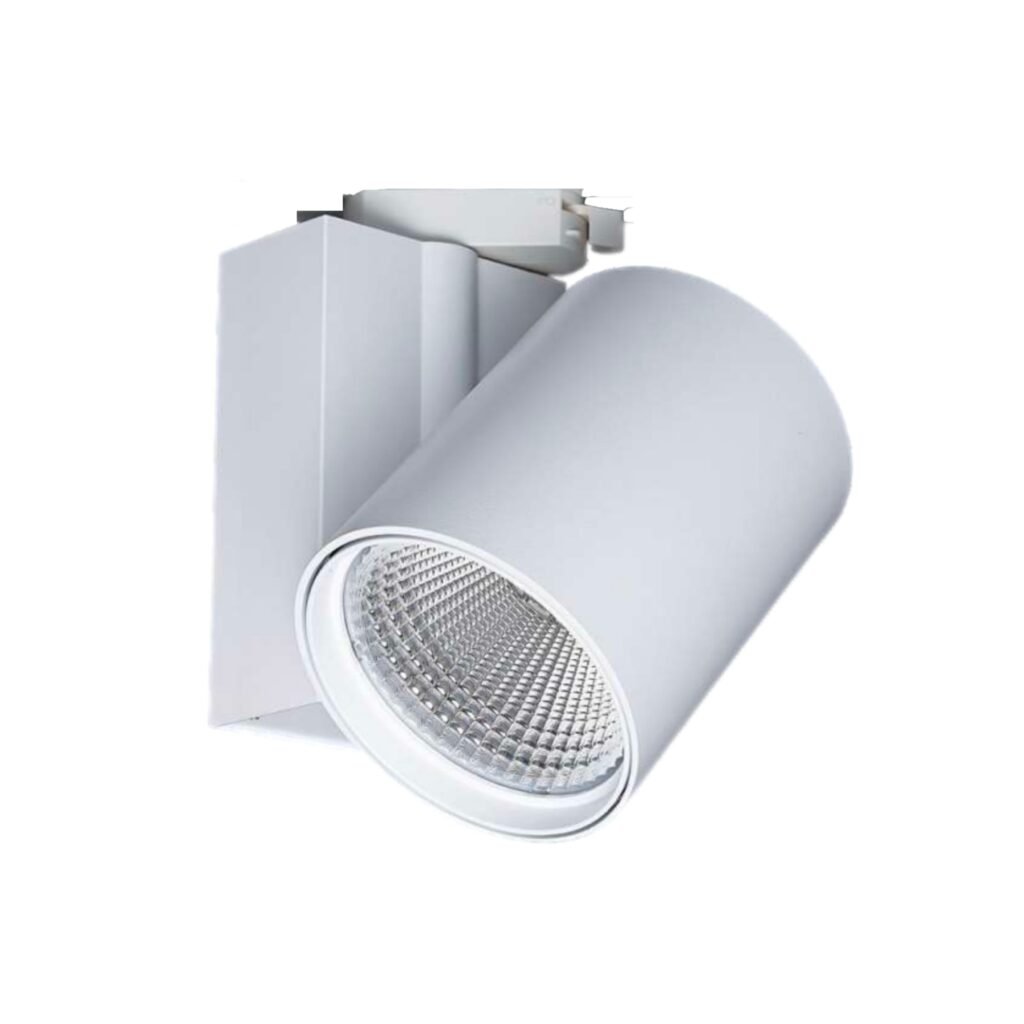

White D316B rectangular-driver COB track spotlight
White finish view of the product
Project specification

Match beam control with the actual space.

At higher nominal powers, aiming, glare and visual comfort are as important as the published wattage. Check a sample at the project ceiling height with the intended rail and controls.

  • Send ceiling height, target area and desired accent-to-ambient contrast.
  • Provide the rail profile and driver or control requirements.
  • Approve the selected beam, finish and compliance documents for the exact model.
3Published powers
5Listed beam choices
Technical data

Compare the published D316B variants.

The figures below come from the reference specification. The dimension notation should be verified against a current drawing before a ceiling or rail layout is finalized.

ModelNominal powerPublished size notationListed beamsPublished CRI
D316B-30W30WØ106 × 130 × H170 mm15° / 24° / 36° / 45° / 60°Ra >80 / 90
D316B-40W40WØ106 × 130 × H170 mm15° / 24° / 36° / 45° / 60°Ra >80 / 90
D316B-50W50WØ106 × 130 × H170 mm15° / 24° / 36° / 45° / 60°Ra >80 / 90

Dimensions and beam availability should be checked against the selected model. Confirm the current mechanical drawing, measured output, CRI and adapter before ordering.

Reference inputAC 100–277V; verify driver variant
Reference CCT3000K / 4000K / 6000K
Housing finishesBlack / White listed
DimmingOptional; confirm exact driver
Product details

Inspect the optical and housing design.

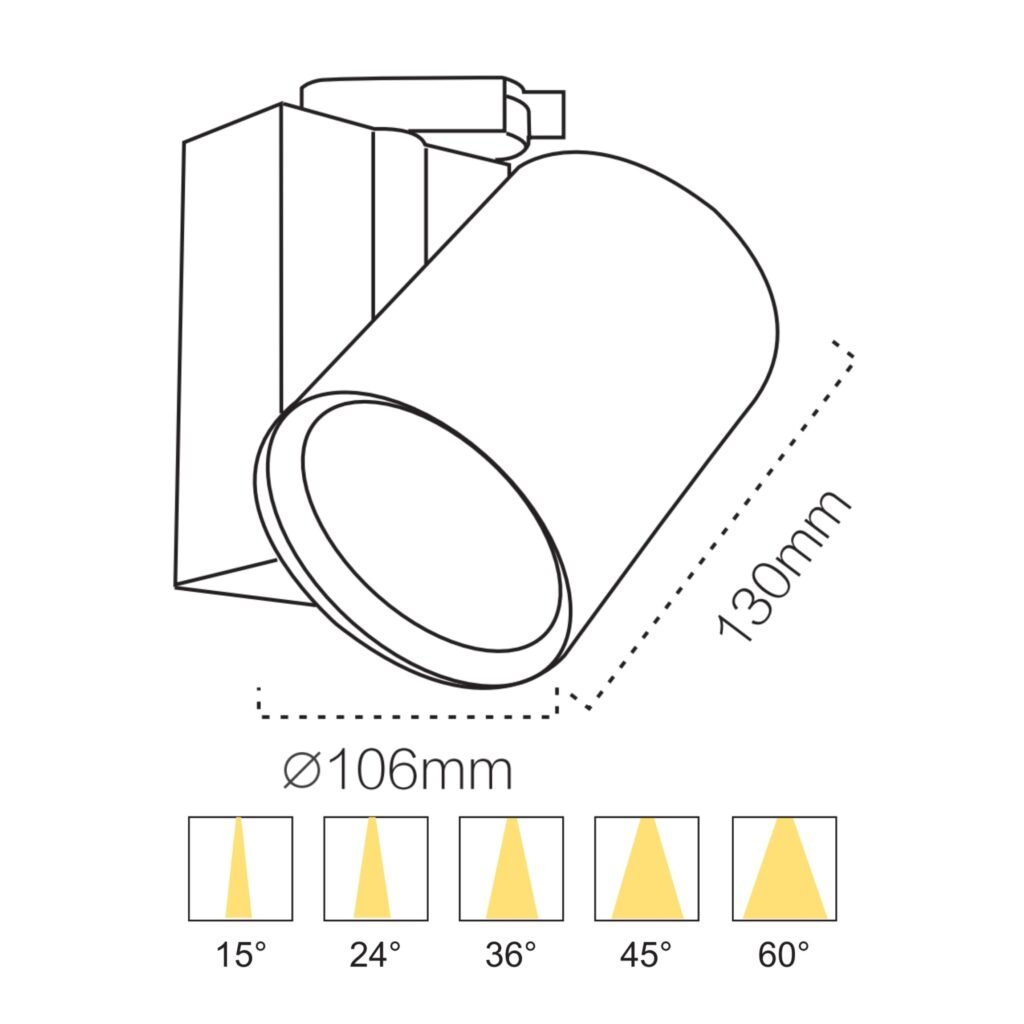

Product artwork from the reference specification shows the D316B housing and beam concepts.

Applications

Focused light for large display zones.

Use the family as a candidate for larger shops, showrooms and selected architectural features. A project sample and current photometry are needed to control glare and unwanted spill.

  • Large retail floors and feature displays
  • Commercial showrooms and entrances
  • Gallery-style feature lighting

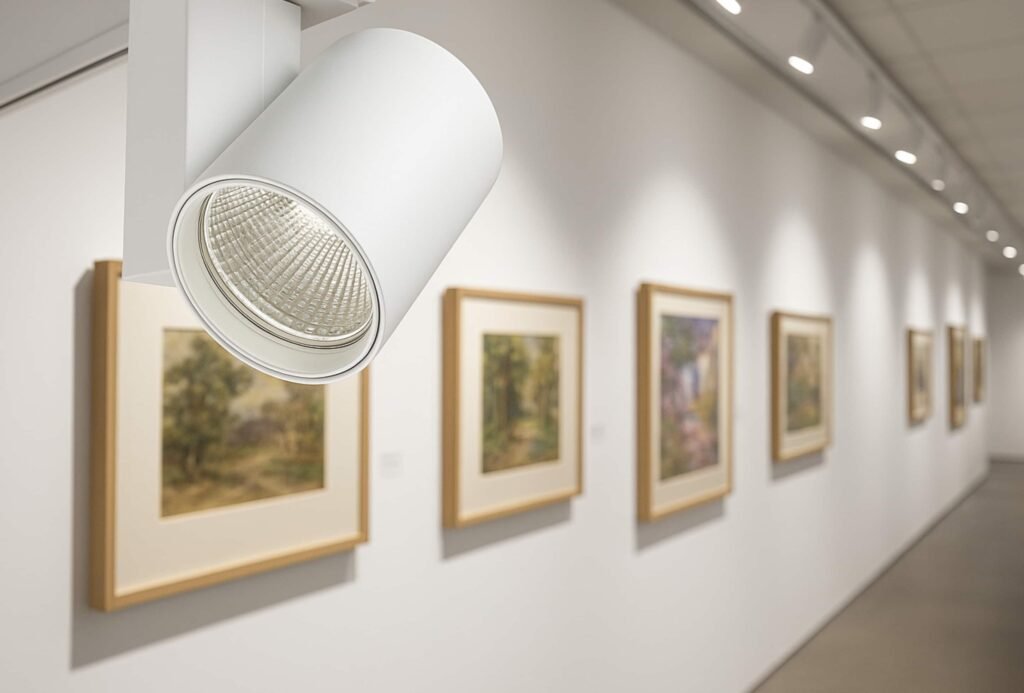

Concept visualization of the D316B rectangular-driver COB track spotlight in an art gallery
Concept visualization based on the D316B product reference; not an installation photograph.
Product FAQ

Questions before specifying?

We can confirm the exact options, compatibility and photometric data for your project configuration.

What powers are listed for the D316B?

The reference table lists 30W, 40W and 50W. Confirm the current measured output and thermal requirements for the chosen version.

Can I choose a 45° or 60° beam?

Both appear in the reference table, although the introductory text lists fewer choices. Ask for model-specific availability and photometry.

Is it compatible with every track rail?

No universal fit should be assumed from the earlier marketing copy. Share the existing rail profile and circuit details for adapter verification.

Are dimming and custom finishes possible?

The reference specification mentions optional dimming and finishes. Confirm the control driver, finish sample, minimum order quantity and current documentation in a quotation.
