Recessed LED Linear Light – Clean Look, High Output, Factory-Direct
Lowcarbon RecessFit™ Recessed LED Linear Light
Tired of uneven lighting or bulky fixtures breaking the ceiling aesthetics? The RecessFit™ Series is your answer. This embedded linear lighting solution offers a clean, trimless finish, high luminous efficiency, and plug-ready modularity – all designed and manufactured by Lowcarbon, your trusted LED lighting factory with 20+ years of B2B export experience.
With a 40W / 1200mm configuration, 120° wide beam angle, and >80 CRI, it’s ideal for office ceilings, schools, corridors, and retail chains. Whether you’re a contractor, lighting distributor, or procurement manager – this is your go-to recessed light that combines style, performance, and reliability.
✅ CE & RoHS certified
✅ Customizable length, color temp, and dimming options
✅ Built for Europe, UK, Middle East & Australia compliance
📊 Product Specifications
| Model | LC-RF120-40 |
|---|---|
| Size | 1200×90×35 mm |
| Power | 40W |
| Input Voltage | AC 185–265V |
| Lumen Output | 4200 lm |
| Color Temp | 3000K / 4000K / 6000K |
| Beam Angle | 120° |
| CRI | >80 |
| Material | Aluminum + PC diffuser |
| Mounting | Recessed (Trimless or with frame) |
| Lifespan | 50,000+ hours |
| Certification | CE / RoHS |
| Warranty | 3–5 Years |
Why Choose Recessed LED Linear Light
✔️ Flush-Mount Design – Trimless finish for a seamless ceiling aesthetic
✔️ Factory Customization – Length, wattage, CCT, and dimming all tailored to project specs
✔️ Efficient Heat Control – Built with 6063 aluminum and optimized PCB layout
✔️ Uniform Glare-Free Output – PC diffuser ensures even light without hotspots
✔️ Flicker-Free Performance – Suitable for office, retail, and education spaces
✔️ Quick Installation – Tool-free wiring and plug-ready connectors

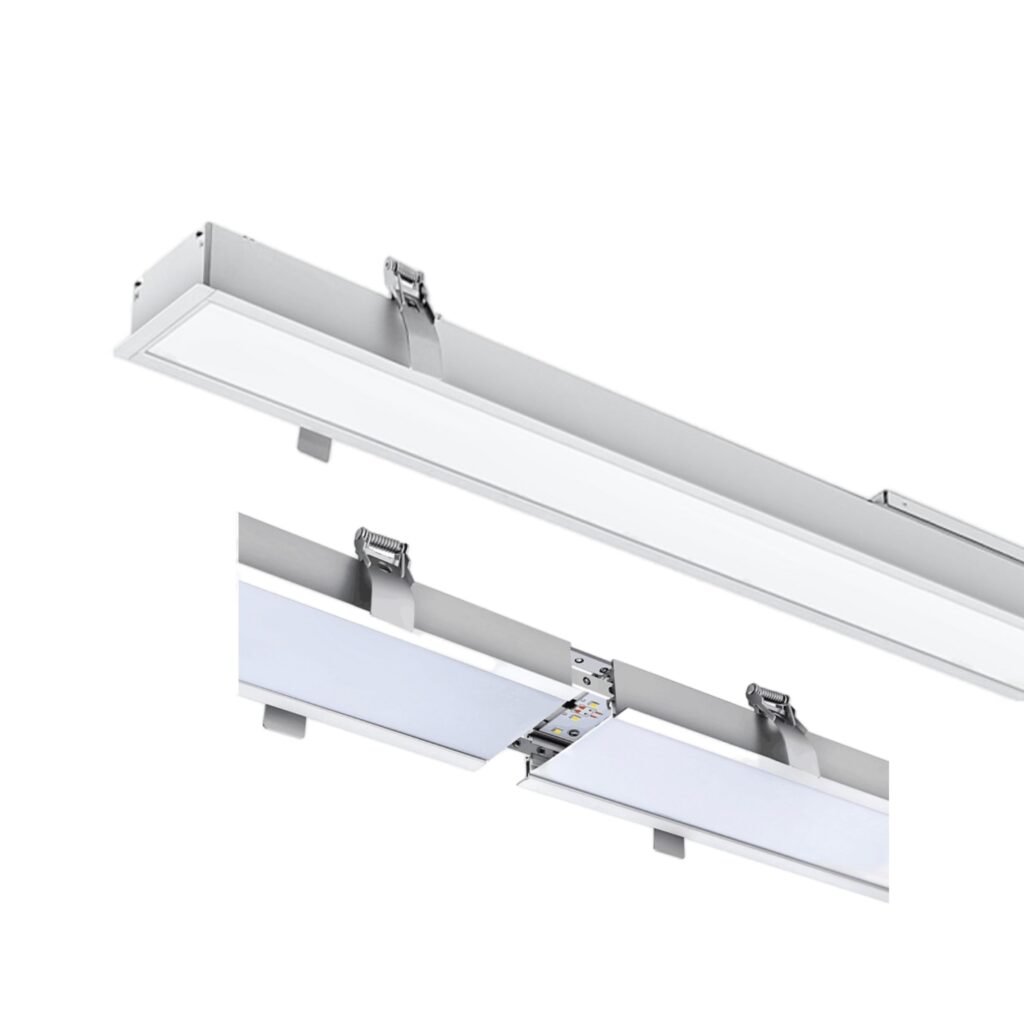

Seamless Linking Structure
Easily connect multiple recessed linear lights in a continuous run — no extra wiring needed.
Quick-connect terminals and tool-free mechanical joints ensure fast, aligned installation with a clean finish.
✅ Time-saving for large-scale ceiling layouts
✅ Ideal for offices, schools, and commercial spaces
✅ Plug-and-play connection between fixtures
Ideal Applications
Open-plan offices
Commercial corridors
Retail shops and supermarket ceilings
University halls and schools
Government and tender-based projects
🏅 LED Track Light Certifications
✅ CE & RoHS
✅ EMC Compliant
✅ ISO 9001:2015
✅ Full Photometric Test Reports Available
✅ EN62471 (Blue Light Safety)
❓ Frequently Asked Questions About RecessFit™ Recessed LED Linear Light
Yes. RecessFit™ supports seamless linking with pre-installed connectors and mechanical joints.
You can quickly line up fixtures end-to-end without rewiring — perfect for long corridors, open offices, or retail ceilings.
Standard length is 1200mm at 40W, but we offer customization:
Lengths: 600mm / 900mm / 1200mm / 1500mm / 2400mm
Power: 20W to 80W depending on size
Let us know your layout and we’ll match it.
Yes. We offer:
0–10V, TRIAC, and DALI dimming
1H / 3H emergency battery kits
Motion sensor integration (on request)
This model is fully recessed, designed for gypsum, aluminum, or T-grid ceilings. Spring clips or side locks are available depending on the ceiling material.
Absolutely. We use flicker-free drivers and >80 CRI 2835 SMD LEDs, compliant with EN12464-1 glare standards for office and commercial use.
Yes — white, silver, and black are available. We also support anodized finishes and laser logo branding for OEM projects.
Samples: 3–5 days
Bulk (≤1000pcs): 15–20 days
We prioritize stable delivery for international project contractors.
