Up-down LED Linkable Linear Lights
Wide Beam Angles for Glare-Free, High-Efficiency Workspace Illumination
UGR<16 Modular Linear Light – Dual Emission Pendant Series
High-Performance Office Lighting. Zero Glare. Total Modularity.
Tired of harsh, uncomfortable office lighting? The FX Series dual-emission linear light solves it all — blending premium design, glare-free optics, and intelligent heat control. With UGR<16, 3 optical systems, and both upward and downward lighting, it’s the smart choice for architects, lighting consultants, and commercial project contractors.
Dual emission design: simultaneous uplight and downlight
UGR<16 or <14 optics: compliant with international office lighting standards
Multiple light control systems: including honeycomb, grille, prism, and diffuser options
Up to 80W power, with models for 40W/60W linear segments
Quick-connect modular installation, compatible with both surface and suspended mounting
📊 Product Specifications
| Spec / Model | GR-FX3880 | GR-FX5080 | GR-FX6890 |
|---|---|---|---|

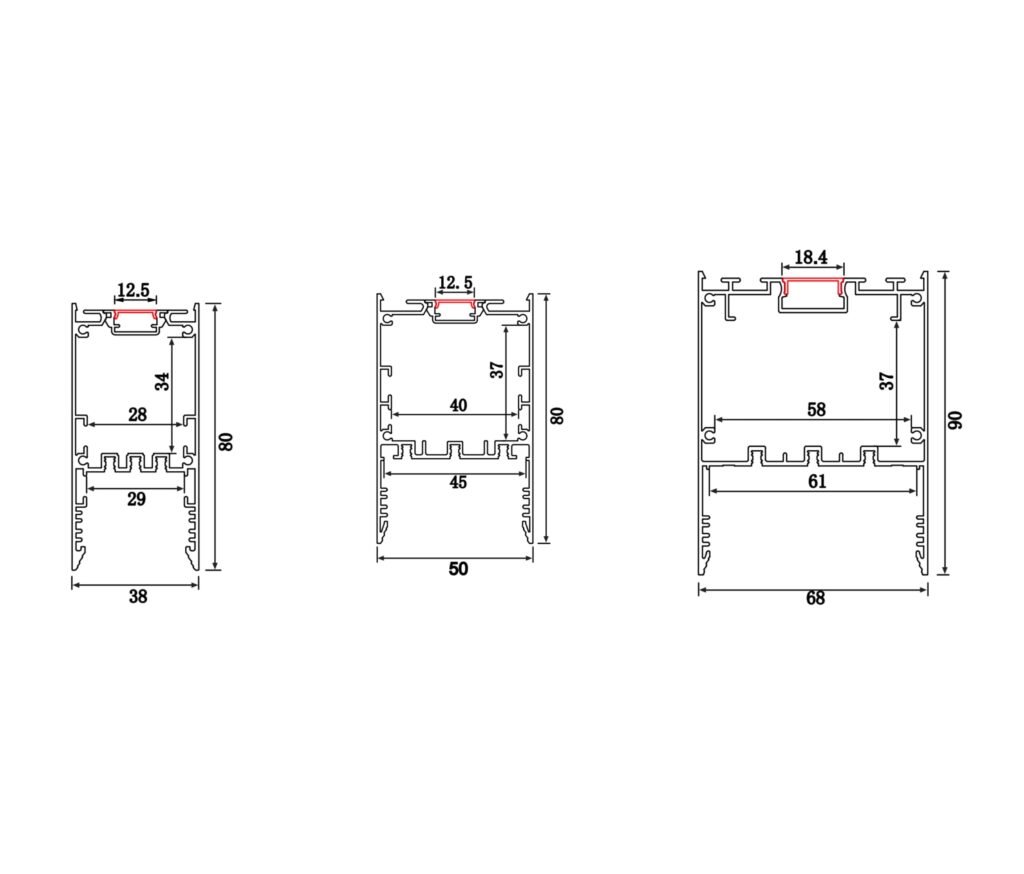

| Dimensions (L×W×H mm) | 1200/2400 × 38 × 80 | 1200/2400 × 50 × 80 | 1200/2400 × 68 × 90 |
| Power Consumption | 40W/M | 60W/M | 80W/M |
| Beam Angle | 120° × 80° | 120° × 85° | 120° × 95° |
| UGR | ≤20 | ≤16 | ≤14 |
| CCT Options | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K |
| CRI | >90 | >90 | >90 |
| Mounting Method | Surface Mounted | Suspended | Suspended |
Beam Angle Optimization
Tailored light distributions for professional visual comfort
Each model in the LC-FX series is designed with a carefully engineered beam angle to suit various installation heights and application needs:
LC-FX3880: 120°×80° – Ideal for general ambient lighting in open-plan offices or coworking areas.
LC-FX5080: 120°×85° – Optimized for standard ceiling heights in commercial interiors, ensuring wide coverage without glare.
LC-FX6890: 120°×95° – Delivers ultra-wide illumination for large spaces like conference rooms, design studios, or tech campuses.
The combination of wide beam angles and low UGR design ensures visual comfort, uniform brightness, and no dark zones — perfect for high-performance work environments.
Advanced Heat Dissipation Design Ensures Long-Lasting Performance
The LC-FX Series linear lights are engineered for reliable performance in demanding commercial environments. Using advanced thermal simulation and optimized aluminum housing, they ensure stable brightness and long lifespan.
Key Advantages:
Efficient Heat Dissipation
High-conductivity aluminum + airflow channels = fast heat removal.Even Temperature Distribution
Minimal internal–external temp gap prevents hotspots and aging.Proven Performance
120W test: stable temperature after 60 minutes ensures high lumen maintenance.Optimized for 2835 SMD LEDs
Perfect thermal balance for high-power chips in slim profiles.
✅ Ideal for continuous-use office, retail, and architectural lighting
✅ Reduces failure risk, maintenance cost, and warranty claims
Optical Control Options for Every Application
Customize your LC-FX linear light with four professional optical covers — each designed to solve different lighting challenges.
🟦 Diffusion Plate
Smooth, wide-angle light for ambient or general lighting. Ideal for offices and lounges.
🔷 Prism Plate
Delivers low-glare, high-transmittance output. Suitable for UGR<19 office setups.
🟡 Honeycomb Louver (Black/White)
Enhances visual comfort with deep anti-glare control. Popular in conference rooms and retail displays.
🔳 Linear Grille (Black/White)
Focused beam with minimal glare. Perfect for directional corridor or task lighting.
🛠️ All options are field-replaceable — just swap the panel to adapt to new lighting needs.
Ideal Applications
Offices and open-plan coworking zones
Educational environments and libraries
Boardrooms, conference rooms
Premium commercial interiors and showrooms
🏅 LED Track Light Certifications
✅ CE & RoHS
✅ EMC Compliant
✅ ISO 9001:2015
✅ Full Photometric Test Reports Available
✅ EN62471 (Blue Light Safety)
❓ Frequently Asked Questions About LC-FX Series Linkable Linear Lights
Absolutely. The LC-FX series offers multiple optics: diffuser, prism plate, honeycomb, and grille, each available in different beam angles like 120°×80°, 120°×85°, and 120°×95°. You can mix optics across the project or even within a single fitting.
Yes — the up & down lighting is independently configured, allowing for ambient ceiling wash (up light) and functional desk/task illumination (down light). Models like LC-FX5080 and LC-FX3880 use split-module systems for more flexibility.
Yes. The LC-FX series is designed for workspaces. It delivers UGR<16 or even <14 depending on the optical plate used. This makes it ideal for open-plan offices, meeting rooms, and co-working spaces.
Our advanced thermal structure design uses high-conductivity aluminum and convection ventilation, keeping internal and external temperature differences low. This ensures long LED lifespan and stable lumen maintenance.
The LC-FX supports both pendant suspension and surface mounting, making it suitable for a variety of ceiling conditions including concrete, T-grid ceilings, or exposed beams.
Yes. The fixtures support continuous row connection using specially designed joints and alignment pins. You can build long, uninterrupted lighting lines across corridors, workstations, or architectural features.
All LC-FX linear lights are CE and RoHS certified, ensuring compliance with European market standards. We can also provide IES files and Dialux support for lighting simulations.
For standard SKUs, lead time is 7–12 working days depending on volume. For custom CCT or optical combinations, production takes 15–20 days. We manage 5 production lines in-house to keep lead times predictable.
