Why Is This Brushed Aluminum Surface Mounted Downlight Ideal for Modern Interiors?
A compact, low-voltage lighting solution for elegant surface installations.
The SMS01 Surface Mounted Downlight is designed for architects and contractors seeking a clean, refined lighting fixture with solid build quality. Engineered in Lowcarbon’s 5-line China factory, this 7W COB fixture is ideal for retail shops, hotels, showrooms, and modern interiors requiring direct ceiling-mounted lighting.Tired of harsh, uncomfortable office lighting? The FX Series dual-emission linear light solves it all — blending premium design, glare-free optics, and intelligent heat control. With UGR<16, 3 optical systems, and both upward and downward lighting, it’s the smart choice for architects, lighting consultants, and commercial project contractors.
Model: SMS01
Size: Φ94 × H102 mm
Body Color Options: Chrome / Satin Nickel / Champagne Gold
CCT: 3000K (Custom CCT Available)
Ra: 92.9 (High Color Accuracy)
Luminous Flux: 747 lm
Power: 6.7W | 111.5 lm/W Efficacy
Voltage: AC220V
📊 Product Specifications
| Model | SMS01 |
|---|---|
| Voltage | DC24V |
| Power | 7W (1×7W LED Module) |
| Size | Ø94 × H102 mm |
| Current | 0.06A |
| Power Factor | 0.55 |
| Mounting | Surface mounted |
| Material | Die-cast Aluminium |
| Certifications | CE, RoHS |
Key Features & Benefits
Surface Mounted Design – No ceiling cut-out required, perfect for concrete ceilings or renovation projects.

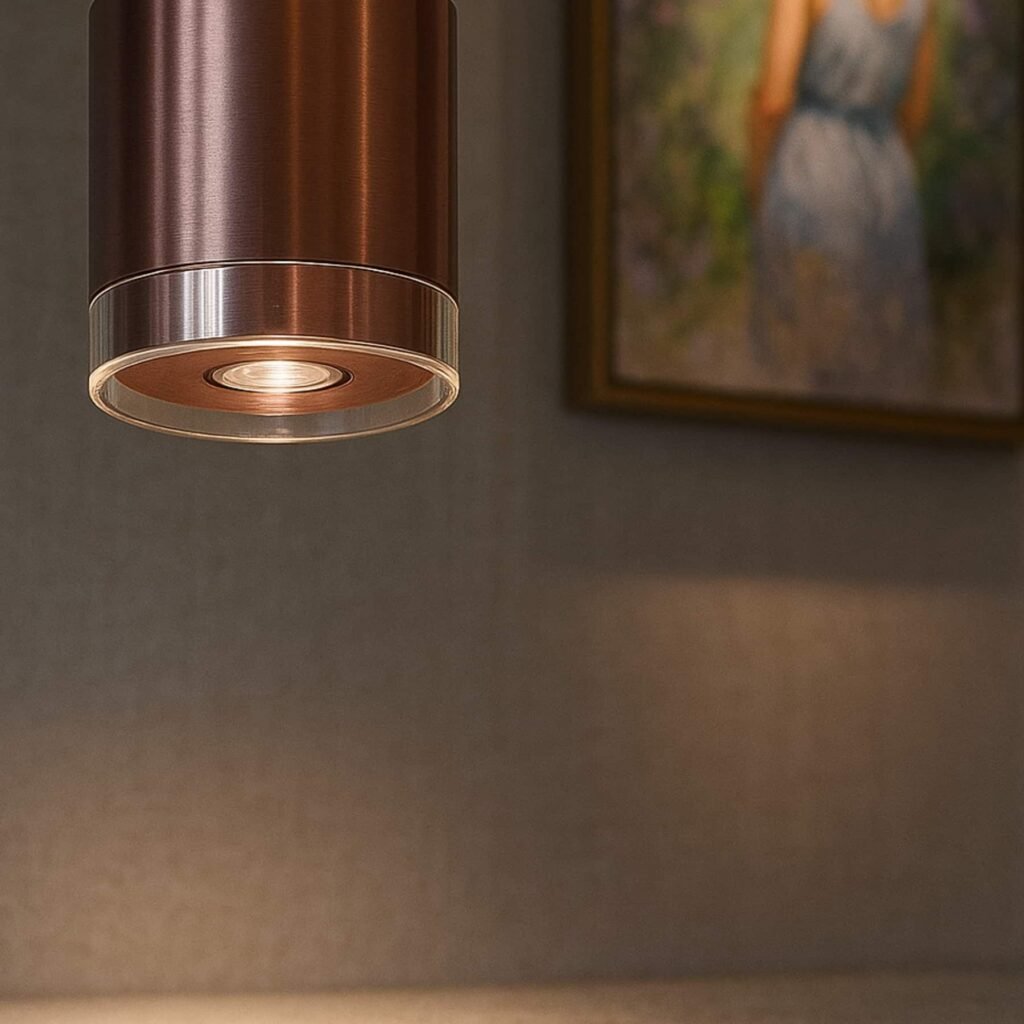

Brushed Aluminium Housing – Available in multiple finishes (rose gold, black chrome, silver) for premium visual integration.
Efficient COB Light Source – Delivers focused, anti-glare lighting with excellent color rendering.
DC24V Input – Ideal for low-voltage lighting systems; improves safety and system efficiency.
Beam Angle Options – Customizable beam patterns to suit ambient or task lighting needs.
Compact Size – Ø94mm × H102mm – subtle yet effective in tight architectural spaces.

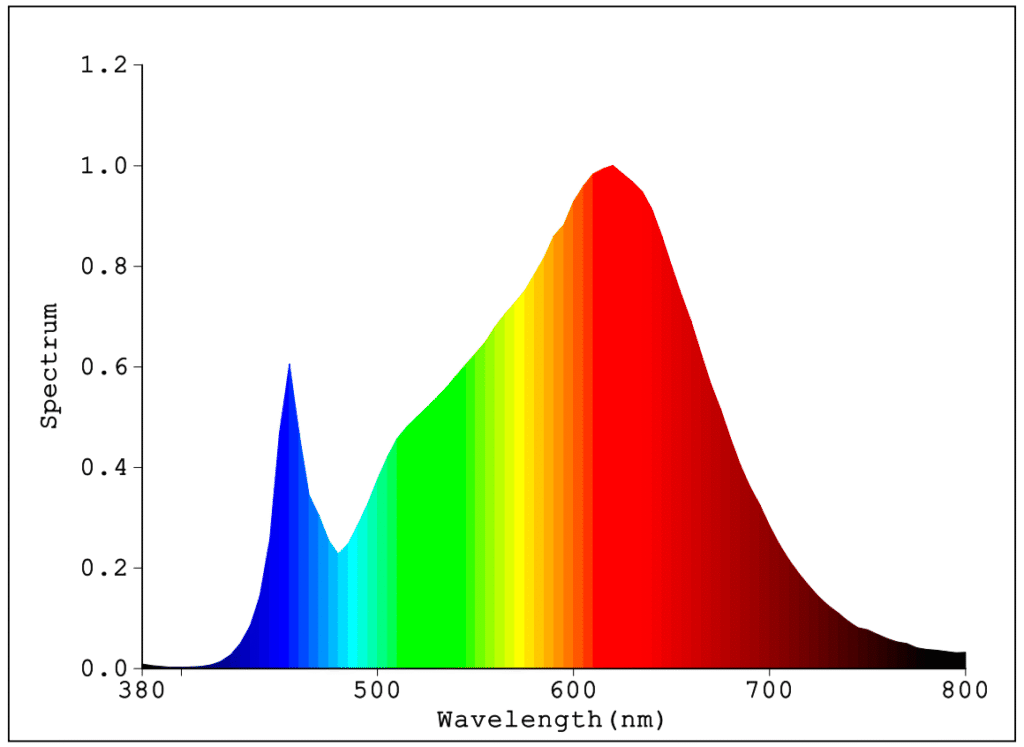

Test Report Highlights
Color Rendering Index (Ra): 92.9
Color Consistency: 1.3 SDCM
Efficacy: 111.5 lm/W
Power Factor: 0.65
CCT Tested: 3007K (Close to ANSI 3000K)
Dominant Wavelength: 583.0nm
Total Flux: 747.47 lm

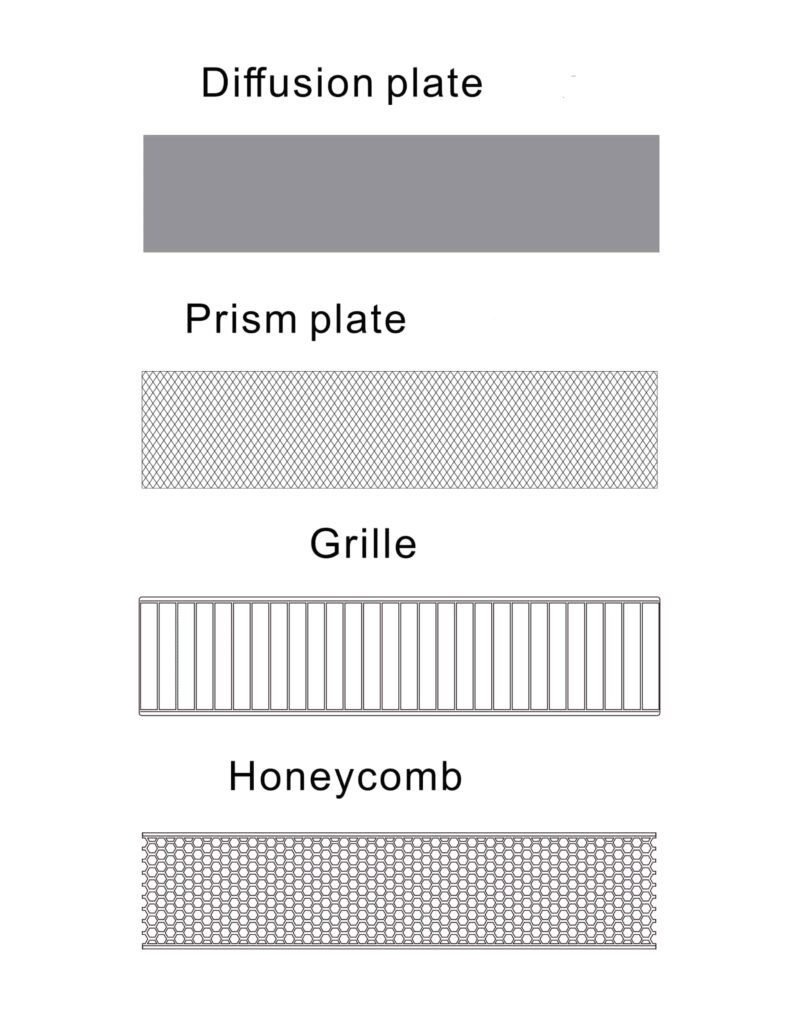

Optical Control Options for Every Application
Customize your LC-FX linear light with four professional optical covers — each designed to solve different lighting challenges.
🟦 Diffusion Plate
Smooth, wide-angle light for ambient or general lighting. Ideal for offices and lounges.
🔷 Prism Plate
Delivers low-glare, high-transmittance output. Suitable for UGR<19 office setups.
🟡 Honeycomb Louver (Black/White)
Enhances visual comfort with deep anti-glare control. Popular in conference rooms and retail displays.
🔳 Linear Grille (Black/White)
Focused beam with minimal glare. Perfect for directional corridor or task lighting.
🛠️ All options are field-replaceable — just swap the panel to adapt to new lighting needs.

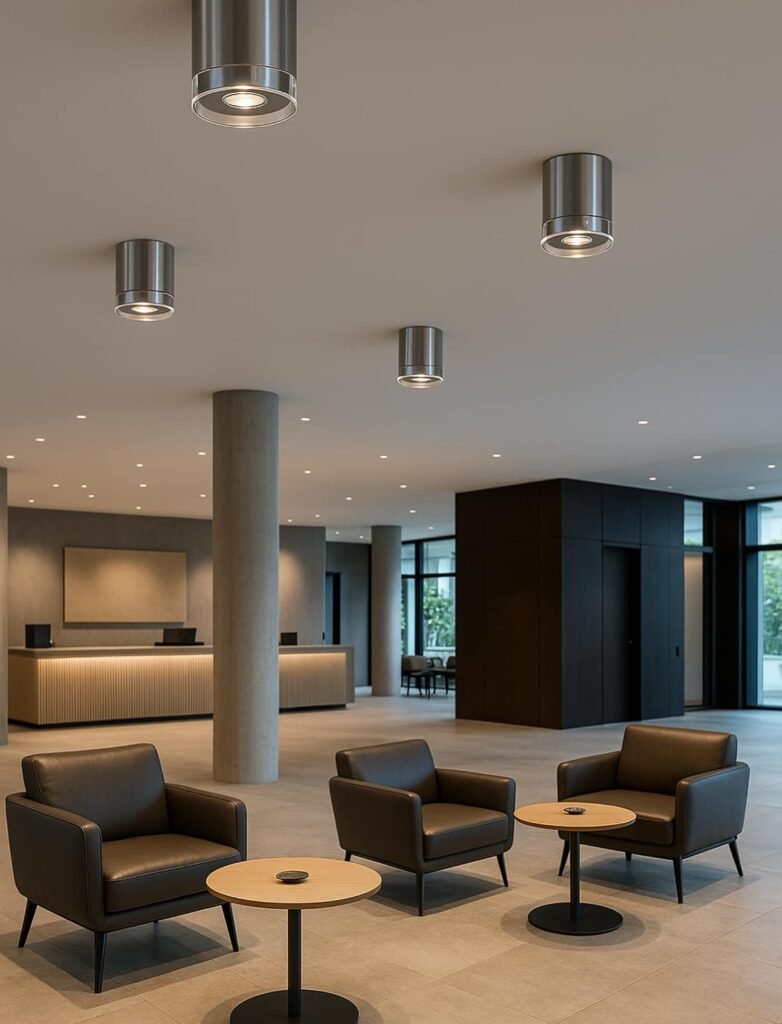

Ideal Applications
This surface-mounted downlight is a go-to choice for:
High-end retail displays
Hotel corridors and receptions
Office accent lighting
Restaurants with exposed ceilings
Museum and gallery illumination
The elegant finish options and direct-mounting flexibility make it a solid fit for modern and industrial interior concepts.

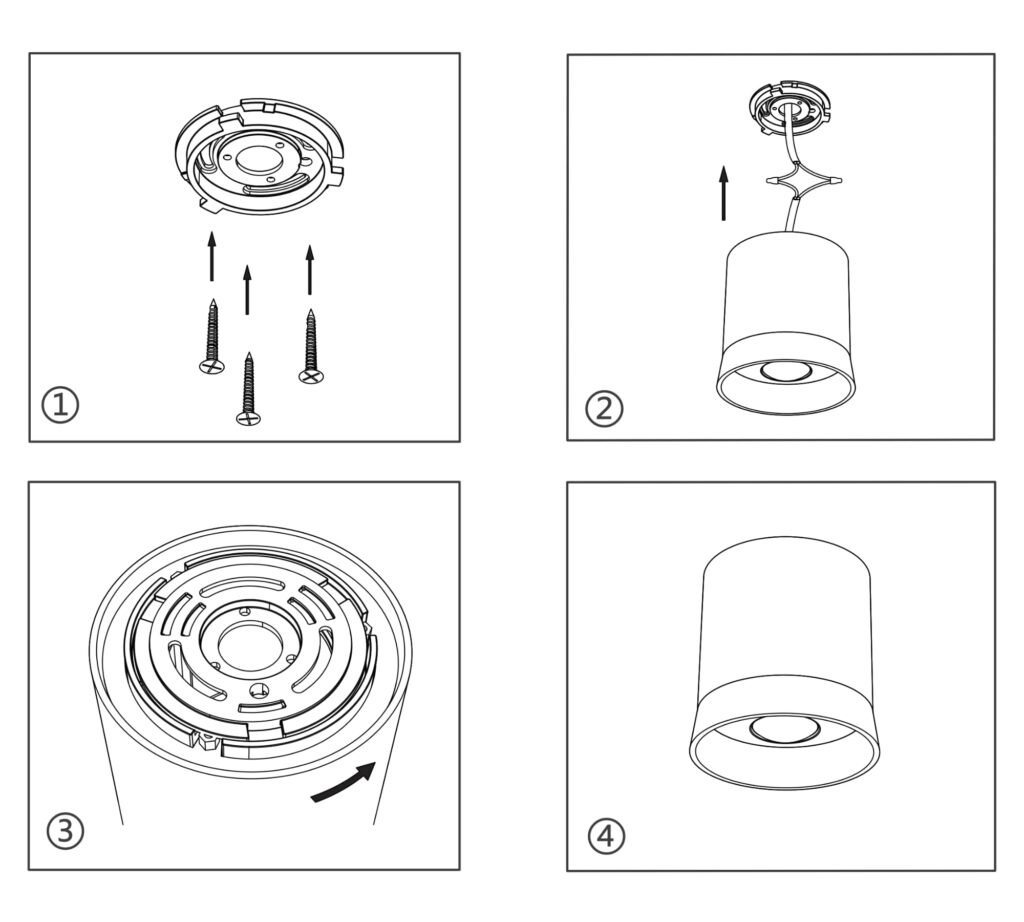

Installation & Wiring
3-step mounting via base ring (no cutout needed)
Internal driver setup (DC24V)
Wiring diameter ≤ 0.75mm² recommended
Install by a qualified electrician
❓ Frequently Asked Questions About SMS01 Series Surface-Mounted Downlight
Yes. The SMS01 is designed specifically for ceilings without cut-outs. Its surface-mounted installation requires no cavity, making it ideal for renovation or concrete slab ceilings.
The SMS01 features durable powder-coated and plated finishes (Chrome, Satin Nickel, Champagne Gold). For semi-outdoor use or humid environments, we recommend Satin Nickel for its superior corrosion resistance.
While the SMS01 features a fixed beam angle optimized for general illumination, we offer optical customization services for volume orders—including narrower beam lenses or glare-reducing filters.
The SMS01 uses a built-in constant current driver. Dimming (TRIAC, 0-10V, or DALI) is available upon request. Please specify during your inquiry to match your project requirements.
Yes. We can provide IES files and help with lighting layout suggestions for projects.
Despite its compact body, SMS01 achieves up to 111.5 lm/W efficacy—comparable or even superior to many recessed models. It’s a top choice where both performance and aesthetics matter.
Yes. We offer IES/LDT files upon request, compatible with DIALux, AGi32, and other lighting simulation software. Our team can assist with layout design too.
