Slim COB LED Track Light with Internal Driver
OEM/ODM Factory Support

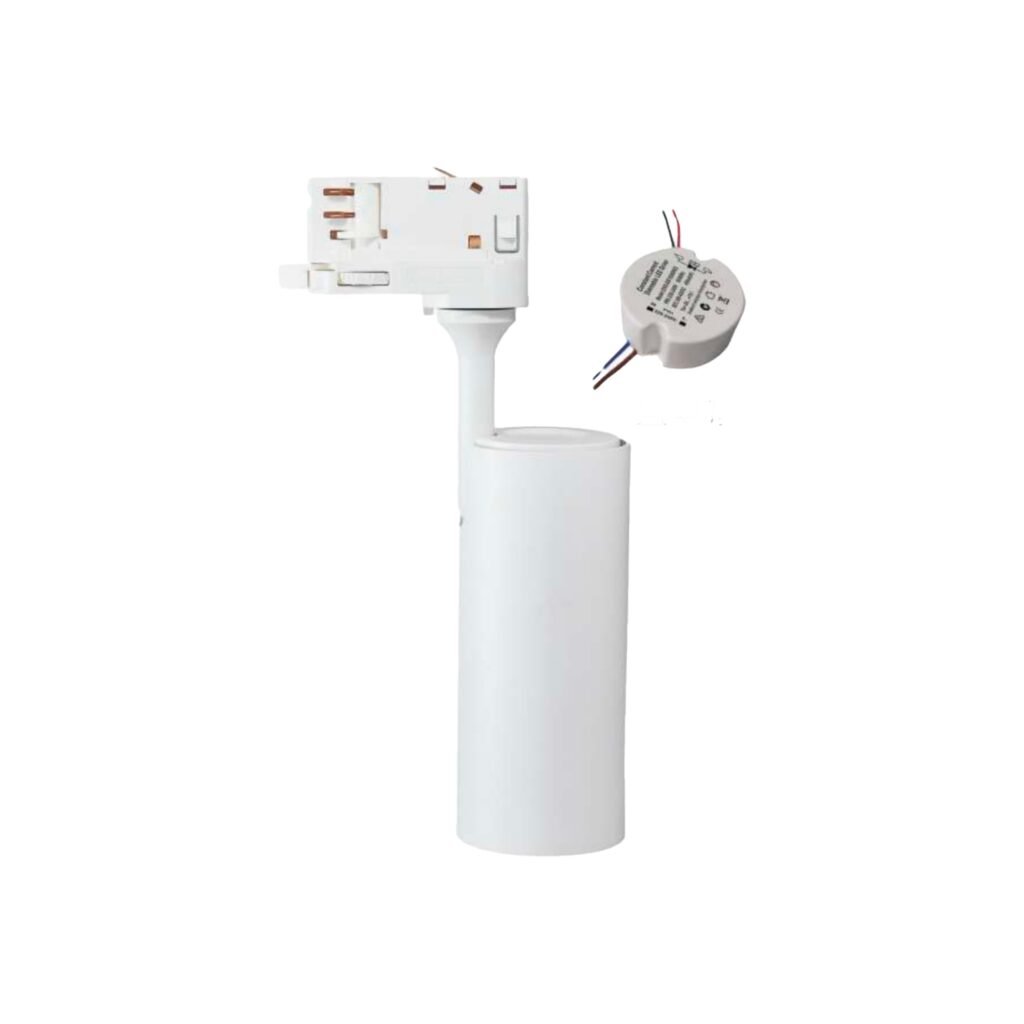

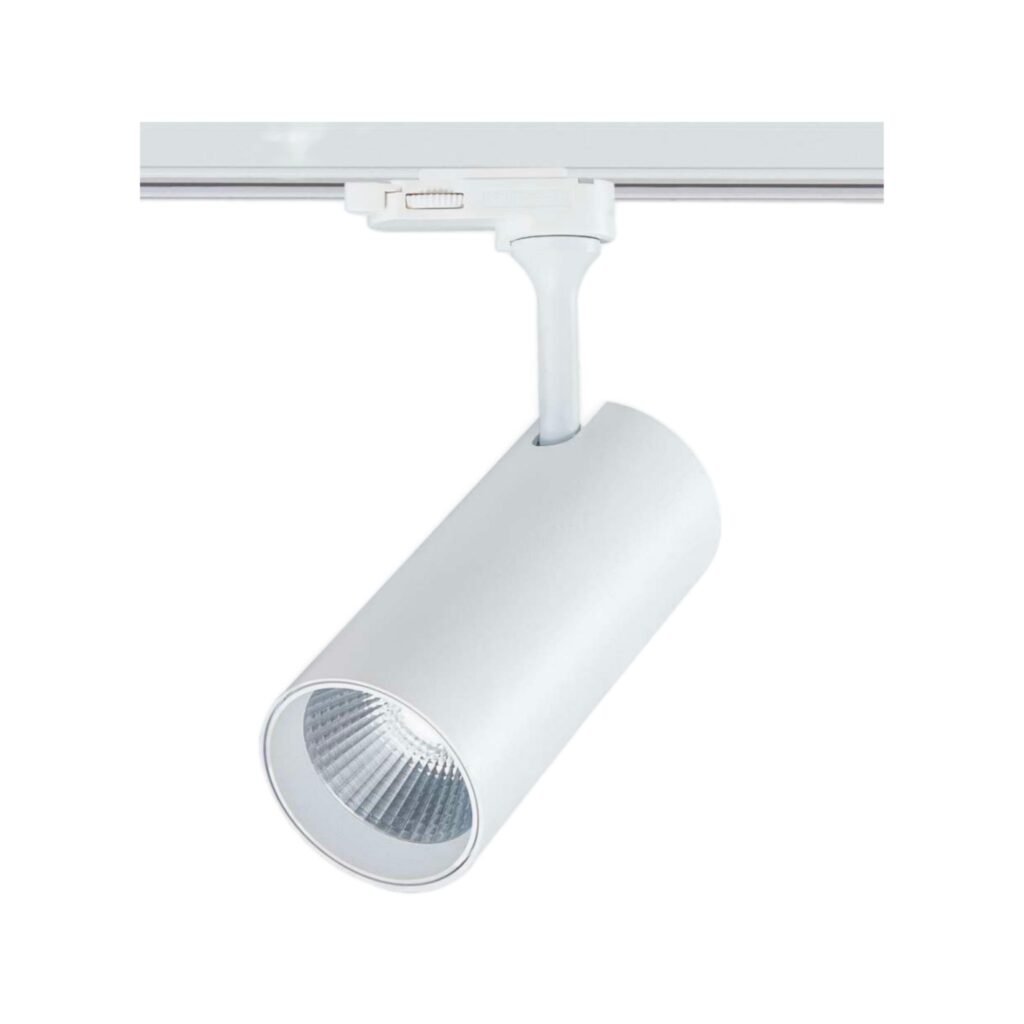

Internal Driver LED Track Spotlight – Series 332 / 333 / 334
Minimalist body, built-in driver, and precision lighting — engineered for clean retail & commercial installations.
The 332–334 series is a modern LED track spotlight with fully integrated driver, designed for projects that require streamlined aesthetics, tool-free installation, and accurate beam control. Available in 3 sizes and wattages (20W / 30W / 35W), this spotlight is ideal for boutiques, supermarkets, showrooms, and galleries.
- Input Voltage: AC100–277V
- CRI: ≥90
- Light Source: COB
- Beam Angles: 15° / 24° / 36°
- Mounting: Standard 3-phase or 4-wire track
- Dimming: Optional (TRIAC / 0–10V / DALI)
📊 Product Specifications

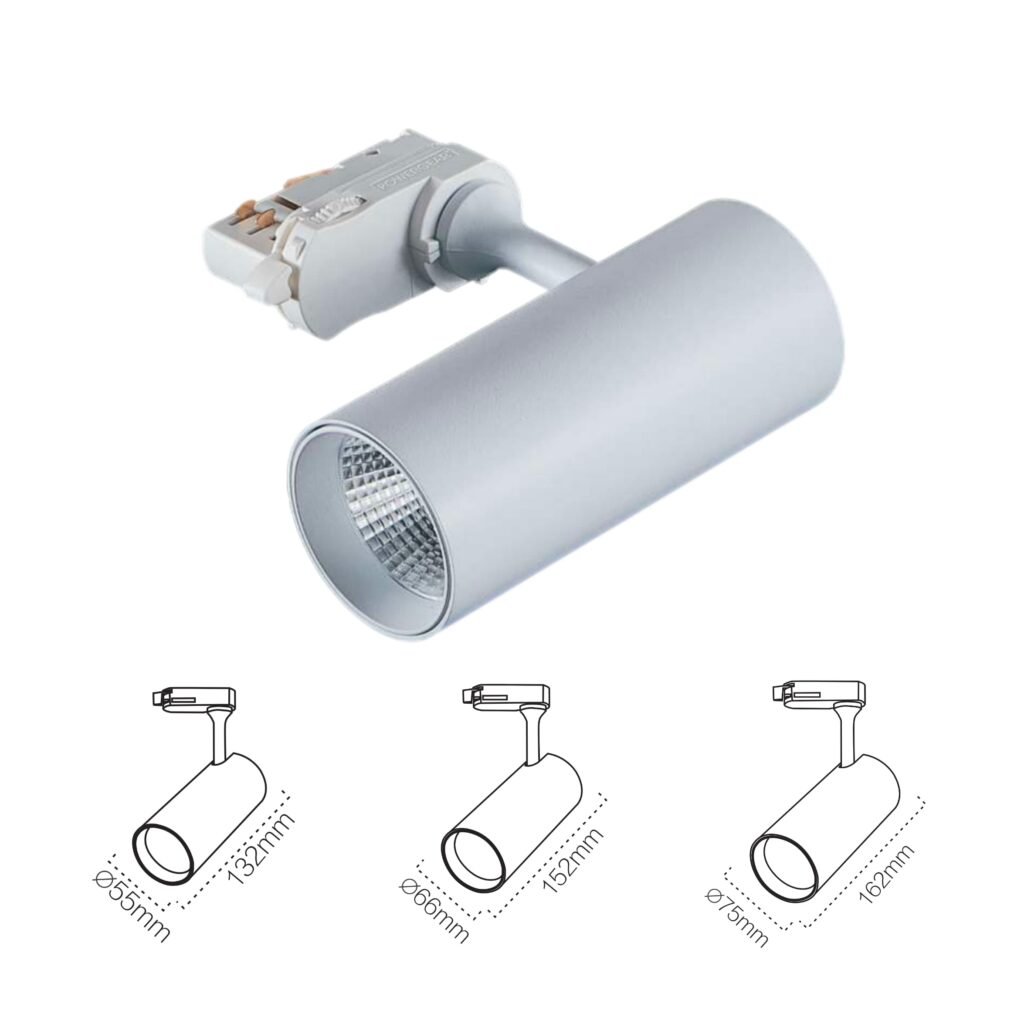

| Model | Wattage | Size (Ø x H) | Beam Angles | Material | Color Options |
|---|---|---|---|---|---|
| LC-332 Built-in | 20W | Ø55 × H132 mm | 15°, 24°, 36°, 60° | Aluminum | White / Black |
| LC-333 Built-in | 30W | Ø66 × H152 mm | 15°, 24°, 36°, 60° | Aluminum | White / Black |
| LC-334 Built-in | 35W | Ø75 × H162 mm | 15°, 24°, 36°, 60° | Aluminum | White / Black |
✨ Key Features
Clean, Integrated Design – All-in-one body with built-in driver for minimalist ceiling appearance.
Flexible Beam Options – Choose 15°, 24°, or 36° for product highlighting, general lighting, or ambient effects.
High-CRI Output – CRI90+ ensures natural color presentation in retail or display environments.
Multiple Sizes – 3 sizes cover small to large lighting zones with consistent design language.
Universal Mounting – Compatible with global standard tracks, suitable for EU / AUS / ME projects.
Application Scenarios
👗 Fashion & Retail Shops – Highlight merchandise and display features

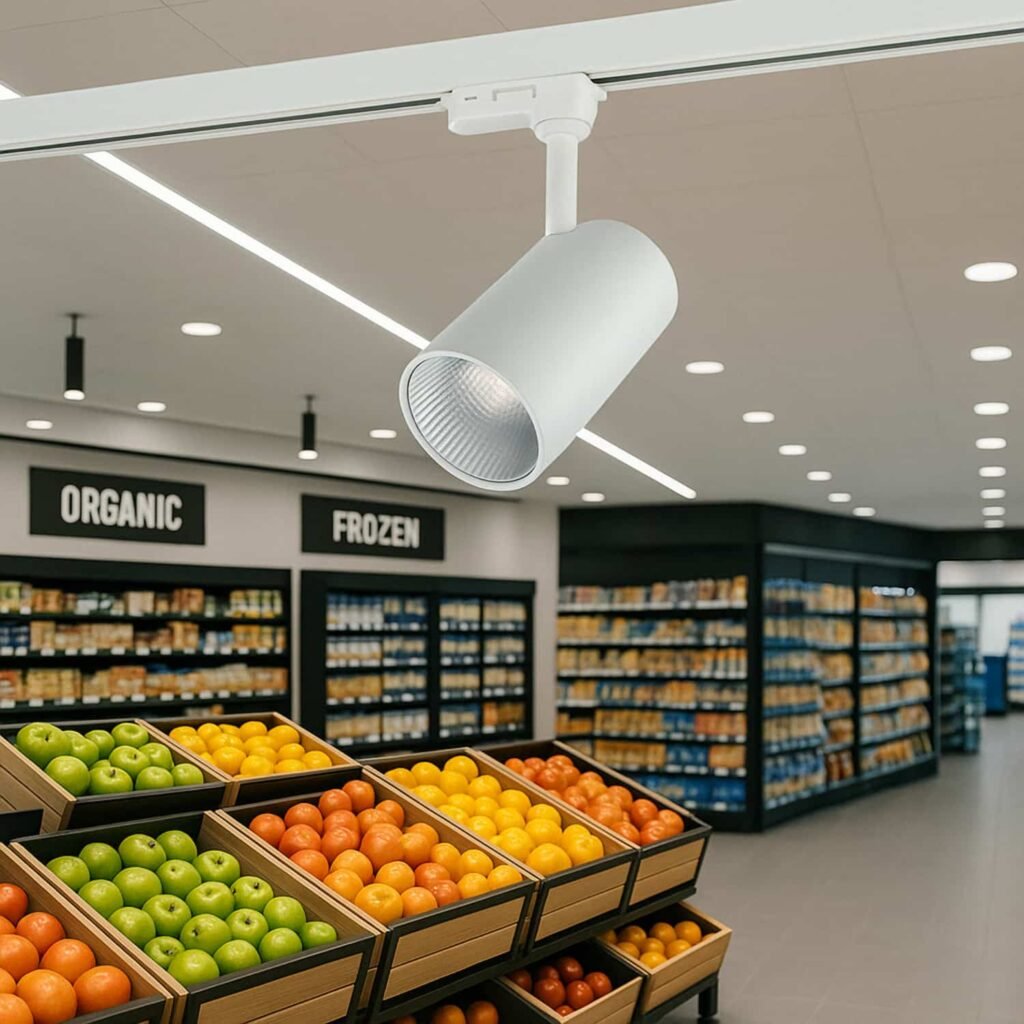

🛒 Supermarkets & Grocery Aisles – Focus lighting on produce, brands, and shelf areas

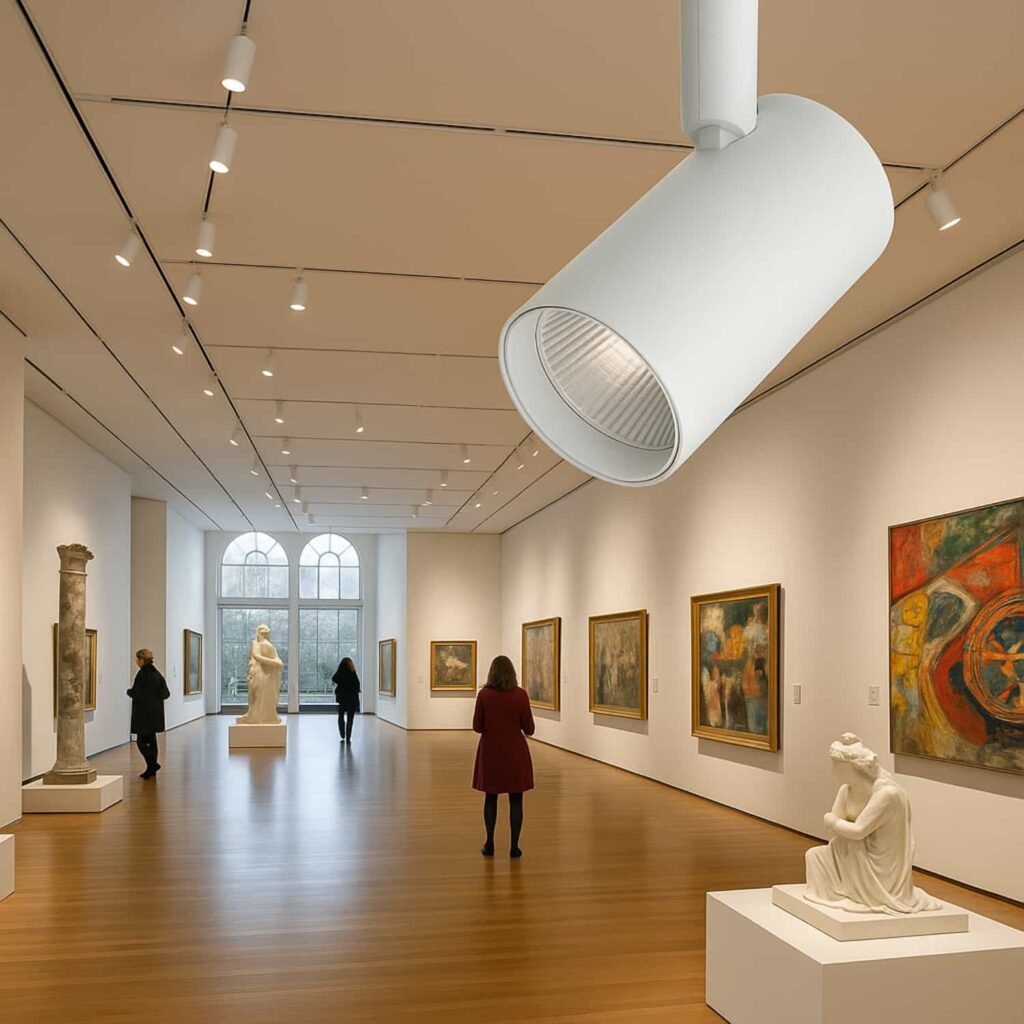

🖼️ Art Galleries & Exhibitions – Clean visuals, no external driver boxes
🏢 Corporate Showrooms / Reception – Blend into modern architectural lighting plans
🏅 LED Track Light Certifications
Our track lights are rigorously tested and internationally certified to meet the safety, environmental, and performance standards required for global markets.
- 📄 CE & RoHS Compliant – Enables smooth access to EU markets and eco-regulations
- 📡 EMC Test Approved – Fully compliant with EN55015 & EN61547 for electromagnetic compatibility
- 🔬 EN62471 Certified – Photobiological safety, ensures no blue light hazard
- 🪪 SAA Certified – Accepted for use in Australia and New Zealand
- 📁 ISO 9001:2015 – Our factory is audited and certified for quality management
- 📋 Test Reports & Declaration of Conformity – Available upon request for lighting designers & contractors
📦 Packaging Details
| Model | Carton Size (mm) | Quantity per CTN |
|---|---|---|
| LC-332 Built-in | 415 × 350 × 250 | 30 pcs |
| LC-333 Built-in | 400 × 320 × 265 | 20 pcs |
| LC-334 Built-in | 450 × 360 × 275 | 20 pcs |
❓ Frequently Asked Questions
Yes. DALI dimming drivers are available upon request. We also support 0–10V and TRIAC dimming options depending on your system requirements.
Absolutely. Our engineering team can provide IES files, Dialux layouts, and photometric reports tailored to your floor plan — especially useful for chain stores or rollout projects.
We can support beam angle customization beyond the standard 15°/24°/36°, and offer matte black, sand white, or RAL powder coating finishes for bulk orders.
Yes, we offer low-MOQ trial orders to support project testing and specification approval.
All our LED drivers are tested for flicker-free output and compatibility with leading control protocols. Please share your dimmer model—we’ll verify compatibility before shipping.
Yes. All products are CE, RoHS, and SAA certified, with test reports and declarations available for each shipment.
